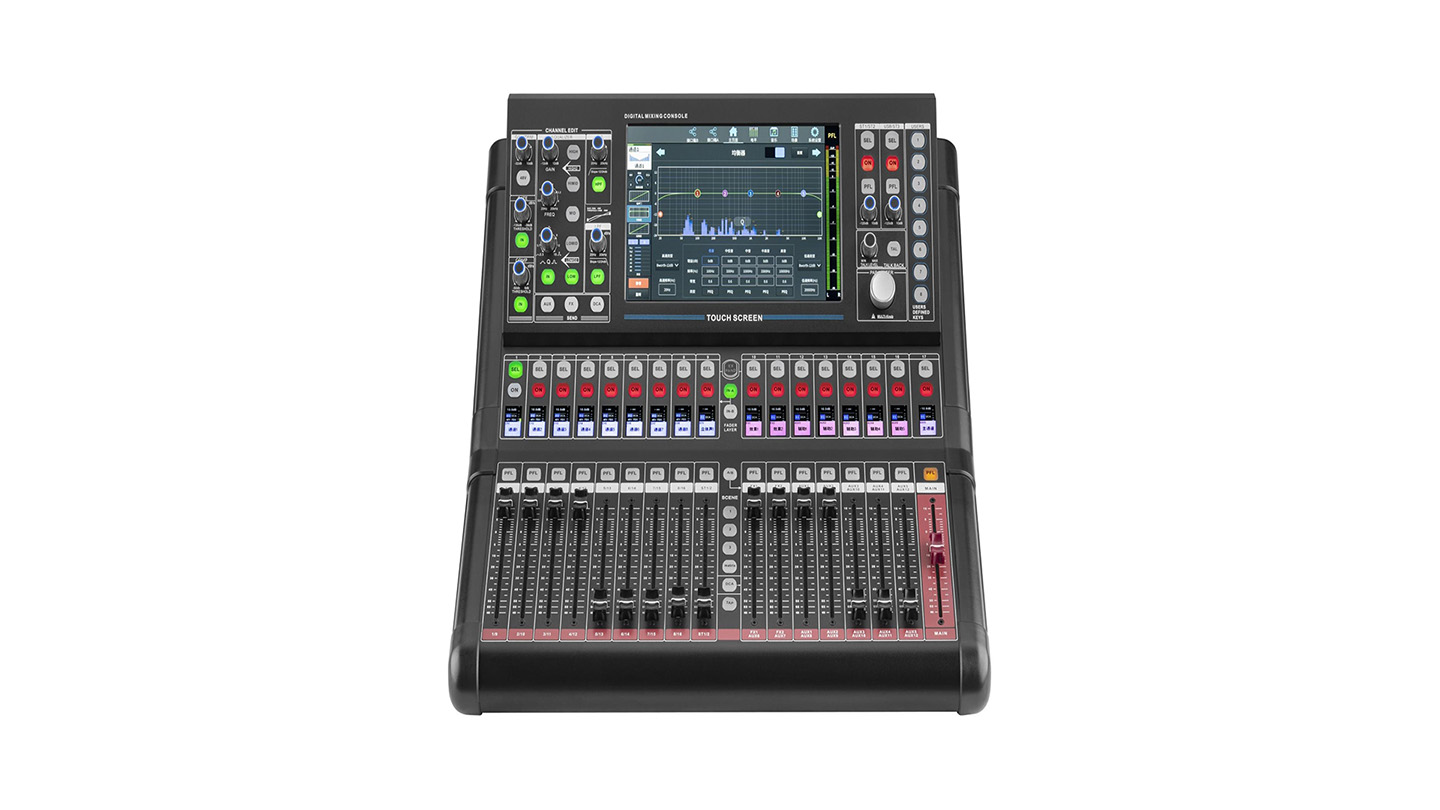

20 Channels Digital Audio Mixer
VIS-M20PLUS
Fast & Secure System
Extensive I/O Options
Network Audio Expansion
Operating system
Based on the Linux operating system development, no fear of virus, more secure and stable operation
5-core CPU processor, 1.8G main frequency, 17 seconds fast boot, faster operation speed
10.1 inch hd touch display, Chinese and English interface, free switch, easier to use
Shutdown parameters are automatically saved without worrying about data loss
Fully processed input / output
Support 52 channel signal input, 32 signal output

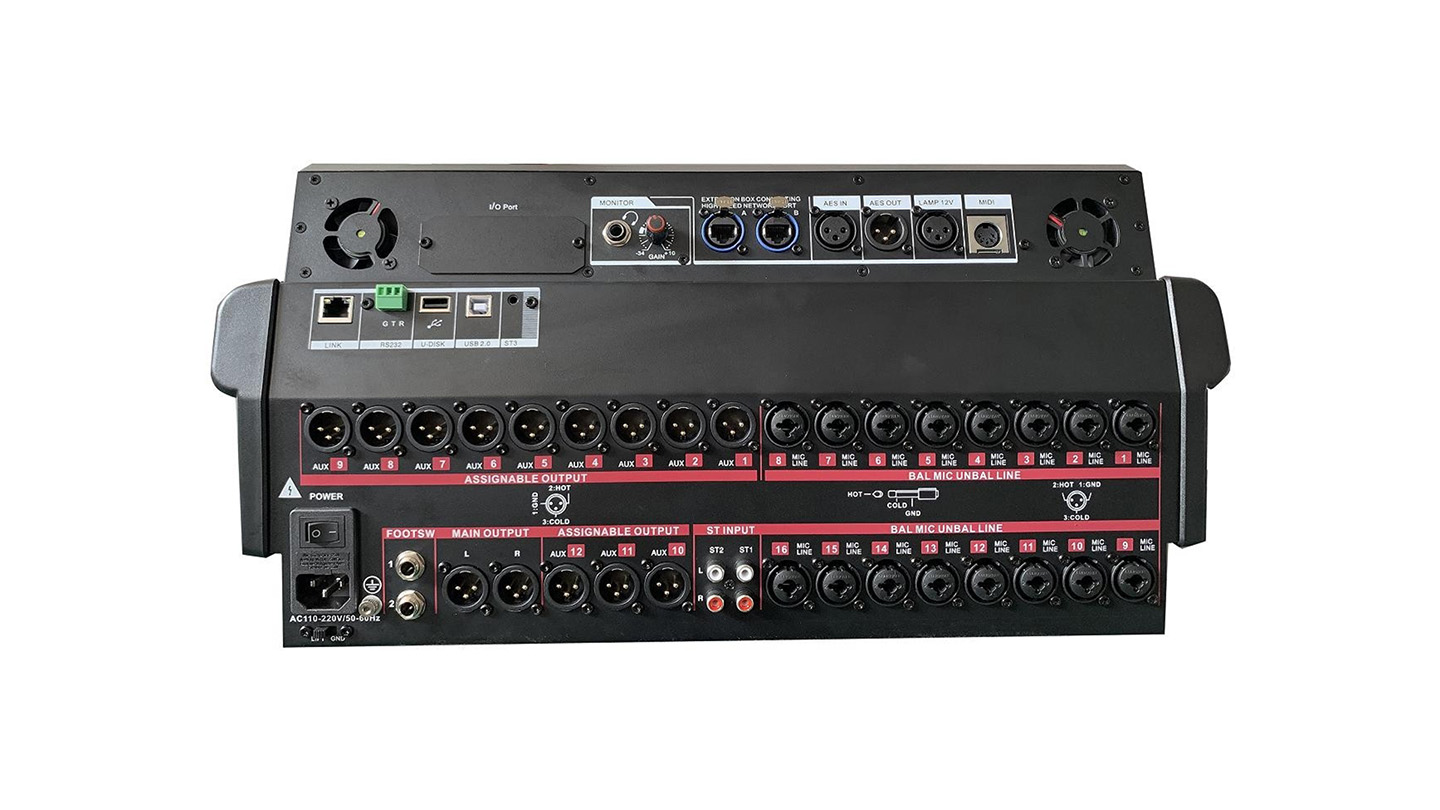

Local input / output
A 22-way signal input
16-way MIC / Line input, 3 sets of stereo input (2 sets of 3.5 lotus stereo input, 1 group of digital input: 3.5mm ST3 stereo input, sound card, MP3, AES digital input)
The 18-channel signal output
Main output L, R, 12 channel AUX 1-12 auxiliary output, 1 channel headset listening output, 1 channel AES digital output
Signal remote extension
Can connect two 16 in 8 out stage interface box or a 32 in 1 out interface box, realize input and output IO expansion, Support network audio extension interface (optional 32 * 32 audio extension card):
Realize the input and output of network signals, and multi-track recording
■ The 10.1-inch HD touch home screen.
■ MIC input gain adjustment (smooth digital gain, avoid clicking when adjusting the gain, participate in saving to the scene)
■ Mic input channel (Linked) parity stereo connection tone
■ + 48V phantom power supply (MIC channels can be opened and closed independently to participate in saving to the scene)
■ 16 channels independent feedback suppressor function, effectively inhibit howling
■ Fast copy function between channels, one finger sliding copy, long press full copy, and cancel the copy function
■ Input processing: built-in pressure limit device, noise gate, high and low-pass filter, 5-segment parameter equilibrium, delay, forward and reverse phase.
■ Support the channel side chain compression, dodge function
■ 17100MM electric push rod can be timely memory storage
■ 8 customizable physical keys
■ 8 DCA groups, 8 silent MUTE groups, 8 matrix MATRIX, support custom names.
■ Built-in signal generator (pink noise / positive mystery wave / white noise), can be customized from any one or more output channels output
■ With the channel 96 real-time spectrum RTA function, real-time sweep, fast positioning howling point
■ Integrated automatic mixing function, 2 * 8 automatic mixing settings
■ Output processing: high and low pass filtering, main output 31 segment equilibrium (PEQ / GEQ), auxiliary output 15 segment EQ (PEQ / GEQ), compressor, delay, phase
■ Channel support the display can display different colors, names, convenient to mark the input and output channel
■ Built-in USB sound card to play recording, as well as MP3-U disk 8 * 8 track to play recording,
■ Support the installation of network audio transmission extension card (optional), to achieve up to 32 * 32 track recording and audio network transmission
■ Support the installation of Bluetooth audio transmission extension card (optional) to realize Bluetooth audio transmission
■ 8 quick scene call mode, 100 scene storage, can be customized scene name, scene seamless switch, no sound break
■ Scene mode parameters support U disk import and export data backup
■ Built-in 2-road independent DSP effector bus, preset multiple effect modes for users to use directly
■ Can restore the factory Settings, multi-level password lock function, to prevent misoperation
■ Support the talkback function of the speaker tube
■ Support 232, UDP and other central control control, open control protocol
■ Multi-operating system control software (IOS system, Android system, WINDOWS system, Kirin system)
■ Support for Chinese and English language one-key switch
