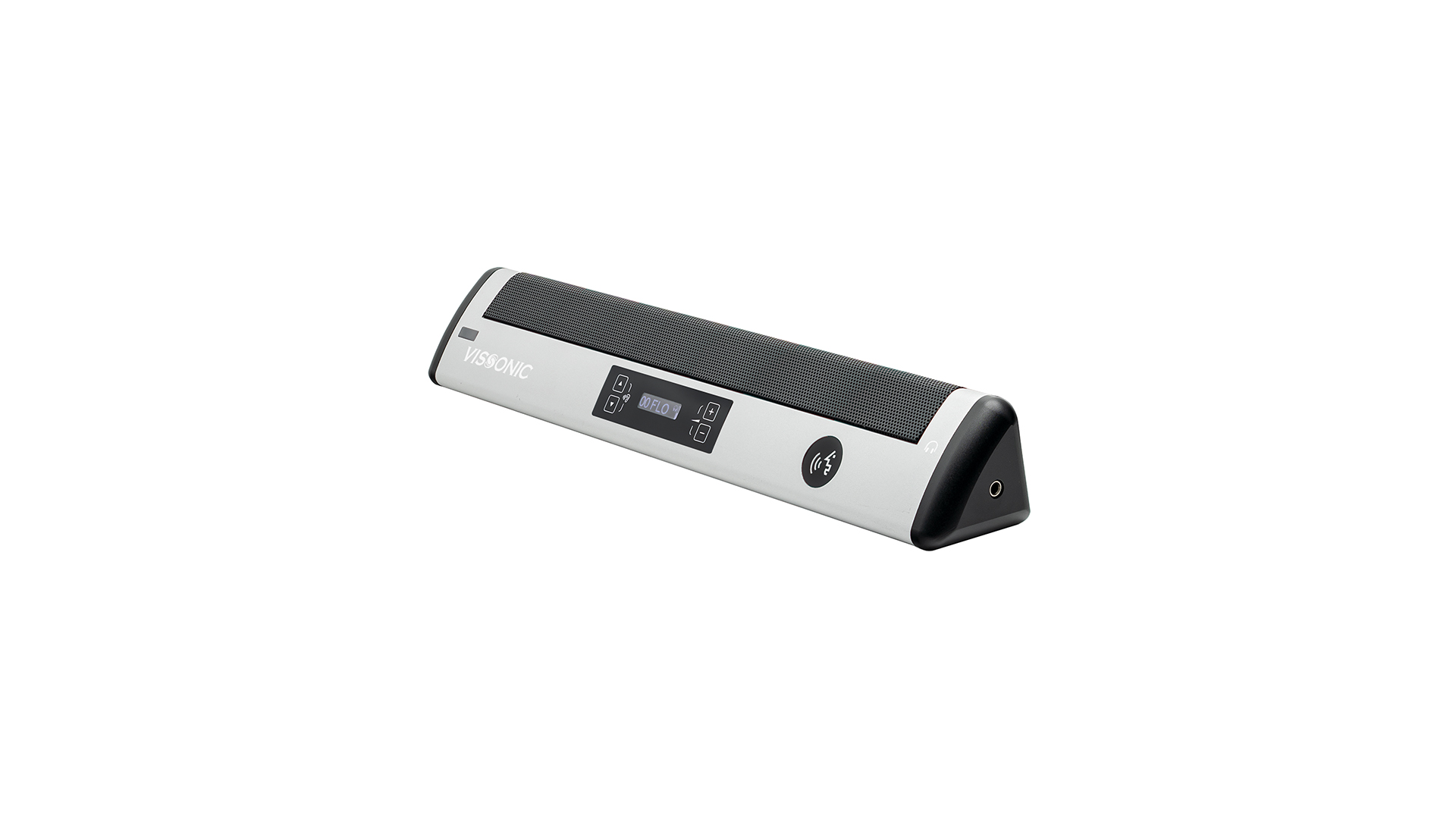

SONICON Digital Array Microphone Array Microphone Unit with channels selector

ARRA-TechTM Microphone array technology

Voice pick-up distance is not less than 80cm

OLED display

Standard CAT5e connectors

64 channels


SONICON Array Microphone Conference System

Simple but elegant design

The whole housing is made Aluminum alloy and supply different colors for option to meet different conference tables. The compress appearance can be putted on the table and won't occupy extra space on front of speaker.

Excellent sound performance

Advanced voice processing technology, with the unique design of the microphone head, this unit can be accurate pickup and restore the human voice through a high-quality built-in speakers or an external PA system, original AUDIO-LINK digital ring network technology, Automatic Gain Control Volume(AGC) / automatic frequency control(AFC) technology help reach higher volume without triggering the howling effect, ensures each word spoken is well understood.

High tech intelligence platform

Timing function, overtime speaking reminder, network control and meeting management, conference Smart reservation, worldwide firmware real-time updates, the integration of IT technologies ensures smart conferencing platform, the SONICON is one of them.


● Stylish and modern design with touchable button
● ARRA-TechTM Microphone array technology and the voice pick-up distance is not less than 80CM
● Priority button and approval button for chairman unit
● Standard CAT5e and RJ45 connectors are used in microphone to provide more convenient on project and maintenance.
● OLED screen, providing excellent brightness, contrast, wide viewing angle but low power consumption
● Built-in interpretation channel selector
● Interpretation function with 64 channels selector which can display the language and channel number (Insert the earphone and the channel selector is active)
● Time and date display on the OLED screen
● One 1.5m cable out to connect the splitter box and keep the table clear
● The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
● Strong system robust by the "Hand-in-Hand-Loop-Network" connection technology
● Support Hot plug and play


● Compliance with IEC 60914, GBT 15381-94
● ARRA-TechTM Microphone array technology improve sound up to 120CM.Using the built-in AGC technology, the acoustic transmission gain is increased. By hiding the mic capsule inside without gooseneck mic, the conference room looks tidy and clean. Large operating range for the orator, maintaining a clear and stable pick-up performance.
● The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, completely avoid the RF interference from cell phone or similar devices.
● Single CAT5e cable transmits 64 channels of audio and various information.
● High fidelity sound by zero loss audio transmit technology, 48K audio sampling frequency, 20Hz~20KHz response frequency
● "Hand-in-Hand-Loop-Network" connection makes the system always working perfectly no matter changing discussion unit or having any malfunctioned units
● This system assigned to each unit independently ID to avoid duplicate ID conflict
● AGC (Automatic Gain Control)/AFC (Adaptive Feedback Cancellation)/ANC (Active Noise Control)/Mix (Auto-Mix) technology
● Hot-swap for any system unit, and the controller has auto-recovery function
● Button for MIC ON/OFF, Priority & Apply Answer button for chairman unit
● Head-set interface is available
● Without using PC software, our conference controller still owns following settings:
    Limit on the number of speaking persons: By Setting the number of active units at the same time (Number is 1/2/4/6/ units)
    Discussion modes:
    "OPEN" Free for all, limited by the active units setting by controller, "OVERRIDE" First in First out, "VOICE" Can activate MIC by detecting sound without press button, "APPLY" To apply then to speak
● Work with VIS-CDC series HD camera and VIS-CATC-A switcher, it can realize camera auto tracking function

Model for Order

VIS-ACC-T.............. Digital Array Microphone with channels selector Chairman Unit
VIS-ACD-T.............. Digital Array Microphone with channels selector Delegate Unit
VIS-CNB...................Connection Box for every two array microphones
