VIS-CDC-4K series UHD Camera

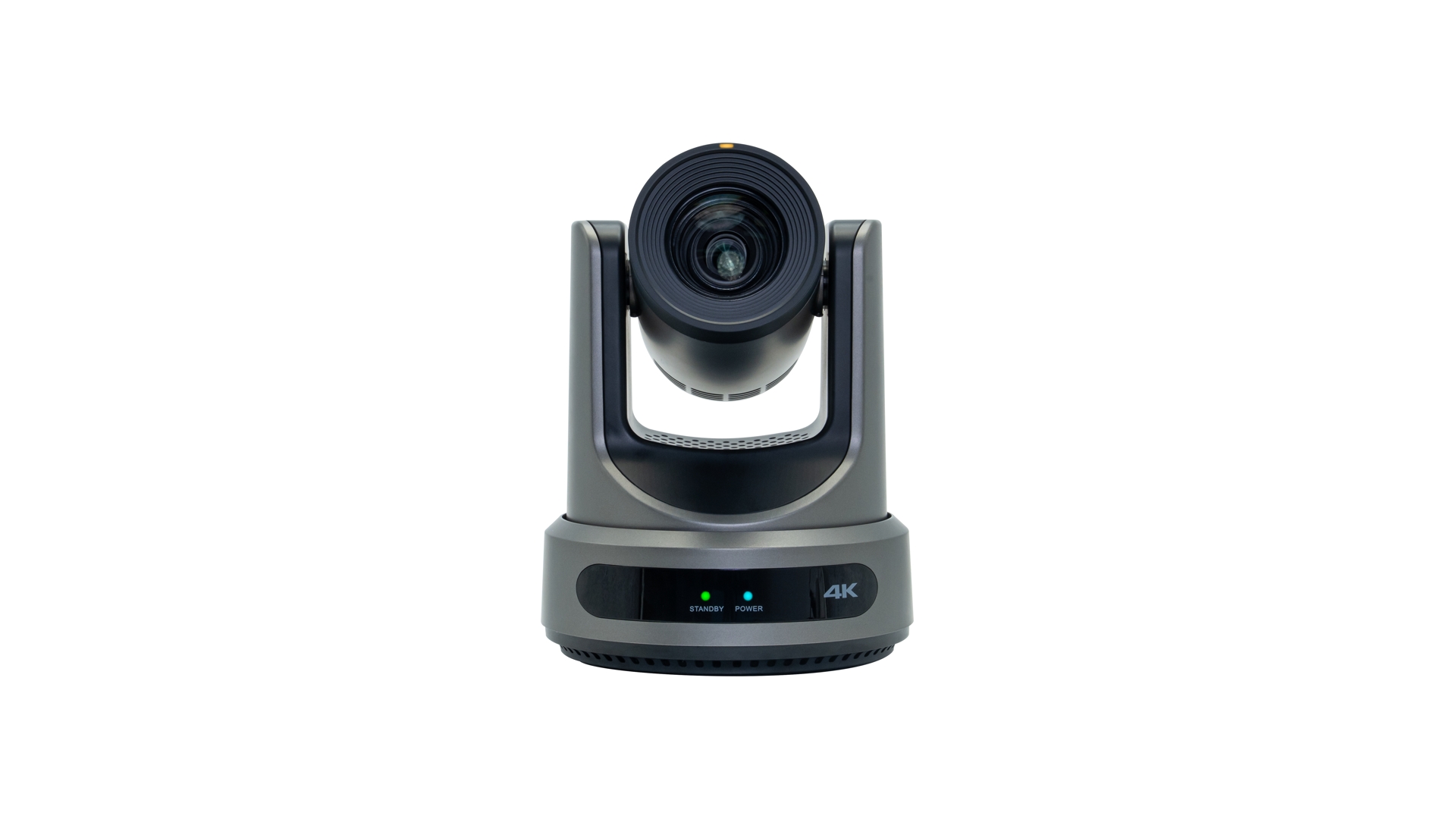

front view of HD camera back view
Camera Auto track and Recorder VIS-CDC-4K series UHD Camera

4K Ultra HD


Smart Exposure

71°wide-angle lens + 12x optical zoom

VISSONIC CDC-4K series UHD Camera captures crisp UHD video combined with smooth PTZ camera positioning and 12X optical zoom for a versatile networked video solution. Exclusively customized high-quality real 8 million ultra-high-resolution 4K ultra-wide-angle lens provides low latency, high quality, frame-accurate video in real time to workflows.

Model for Order:

VIS-CDC-4K-C ................12x optical zoom, USB3.0, HDMI, 3G-SDI, LAN, Ceiling Mount Bracket

VIS-CDC-4K-W ................12x optical zoom, USB3.0, HDMI, 3G-SDI, LAN, Wall Mount Bracke

Related Products:

Related recommendations:

● 4K Ultra HD

It adopts a new generation of SONY high-quality CMOS sensor with a maximum of 8.51 million pixels, which can achieve 4K (3840x2160) ultra-high-resolution high-quality images. And backward compatible with multiple resolutions such as 1080P and 720P.

● 71° wide-angle lens + 12x optical zoom

Exclusively customized high-quality real 8 million ultra-high-resolution 4K ultra-wide-angle lens, 12x optical zoom,horizontal field of view up to 71°.

● HDMI2.0

Support HDMI 2.0 specification, can directly output 4K uncompressed digital video.

● Low power consumption sleep function

Support low-power sleep/wake-up, the power consumption is less than 400mW in sleep state.

● Local storage

Support local storage function, can realize direct local recording on U disk without NVR.

● Low illumination

The new CMOS image sensor with ultra-high performance-to-noise ratio can effectively reduce image noise under low illumination conditions. At the same time, 2D and 3D noise reduction algorithms are applied to greatly reduce image noise. Even under ultra-low illumination conditions, the image remains clean and clear, The image signal-to-noise ratio is up to 55dB or more.

● Rich and perfect interface

Support HDMI2.0 high-definition output, and equipped with 3G-SDI interface, the effective transmission distance is up to 150 meters (1080p30). HDMI, 3G-SDI, USB3.0, LAN four channels can simultaneously output 4 channels of high-definition digital signals.

● Remote control

A variety of control methods, RS232, RS485, network and USB can be used to control the camera.

● Built-in gravity sensor

Support image automatic flip function, convenient for engineering installation and use.

● Smart Exposure

Effectively solve the impact of projectors, televisions and other equipment on shooting people.
