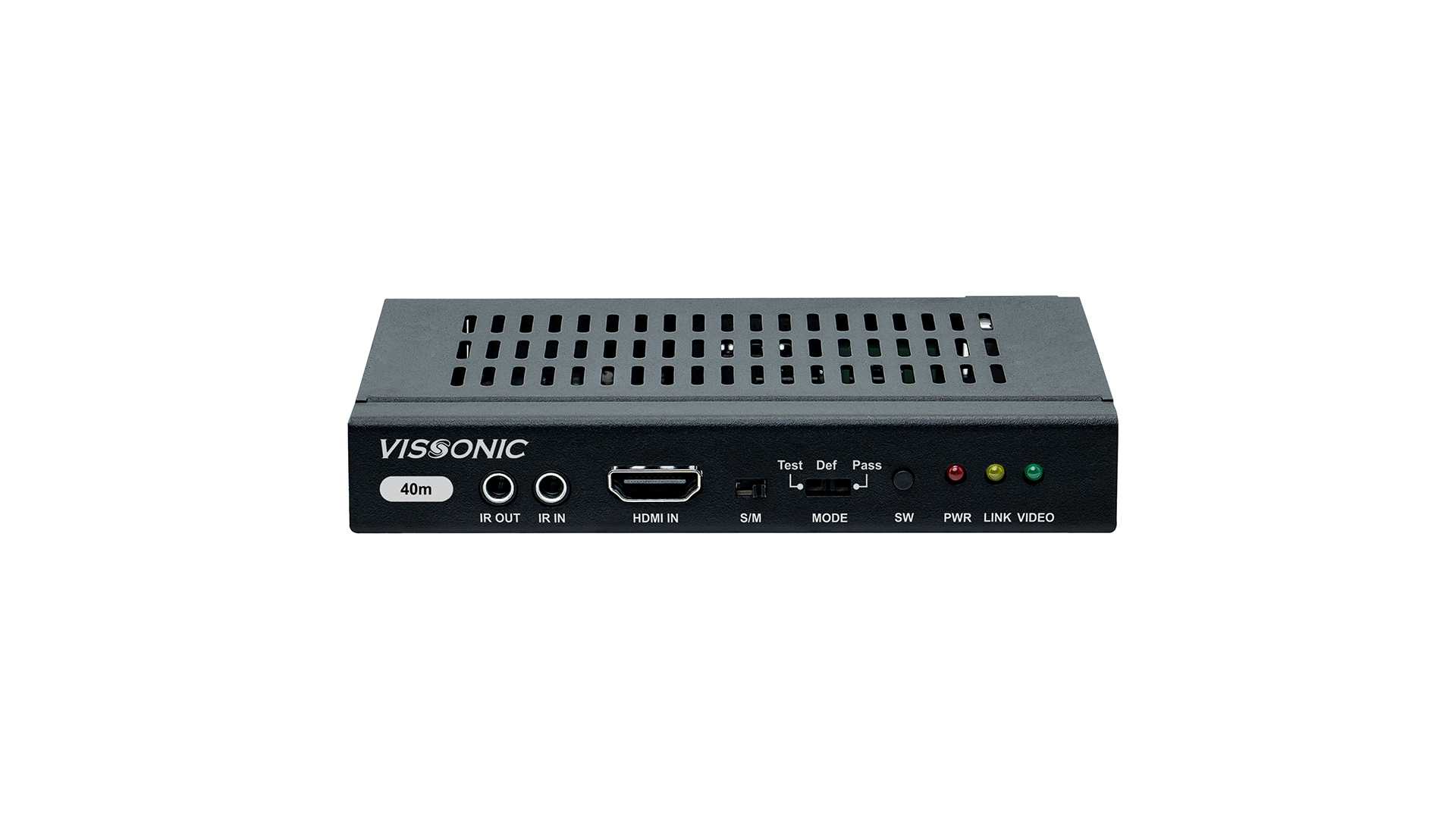

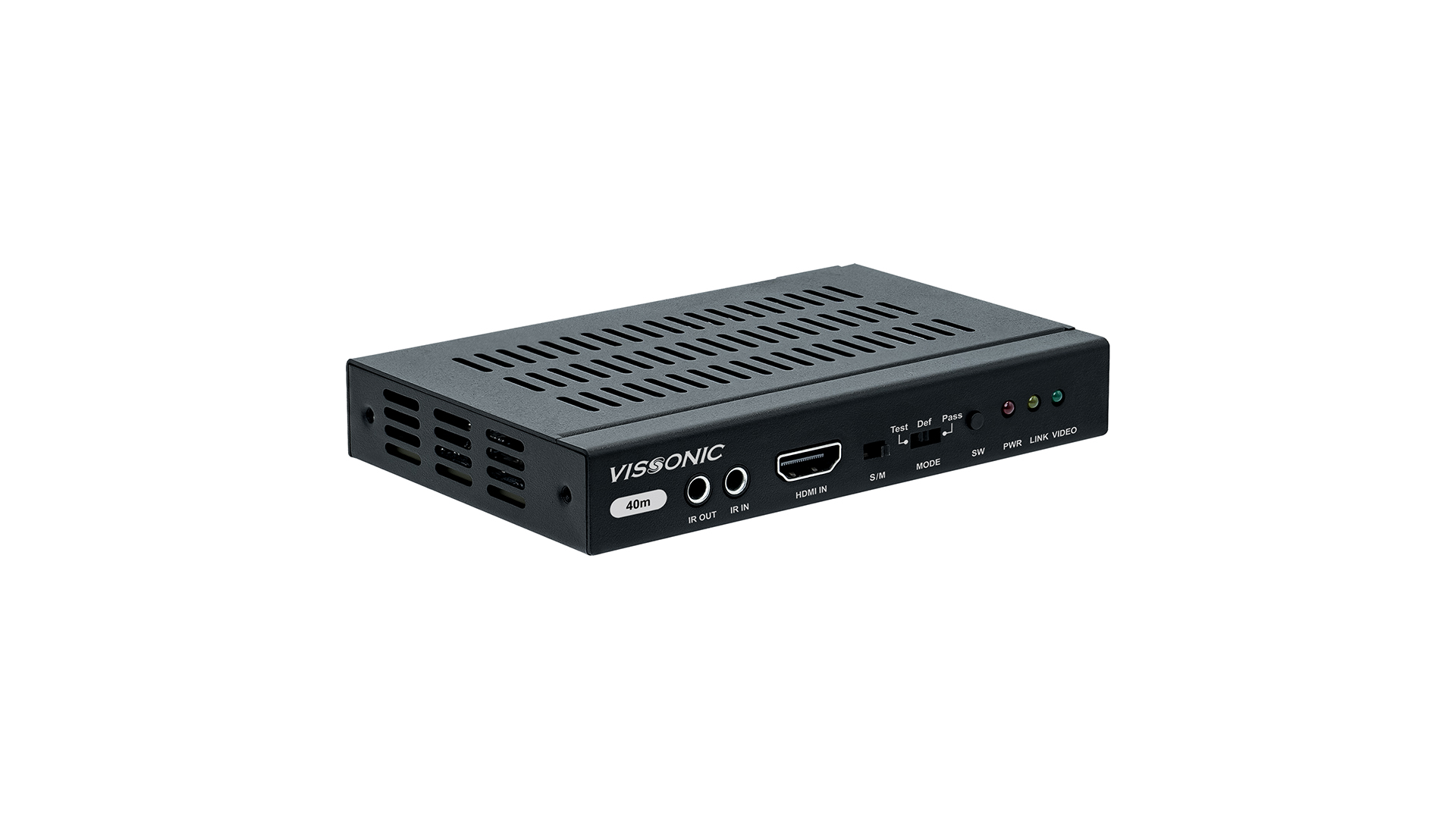

HDBaseT Extender Transmission
VIS-UHB40
Signal Generation
4K60Hz 4:4:4
HDMI Loop-Out
Pass-Through
Overview
The VIS-UHB40 is designed for long-distance signal transmission and integrates with our video matrices or processors. It supports up to 4K@60Hz 4:4:4 resolution and can switch between sending and receiving modes. It also supports bidirectional serial ports, infrared, audio transmission, and POC power, simplifying installation and eliminating extra wiring.
Features
●T/R Integrated Design: Mode switching via toggle for multi-scenario deployment.
● 4K60Hz 4:4:4 Ultra HD: Uncompressed transmission (VIS-UHB100 and VIS-UHB40).

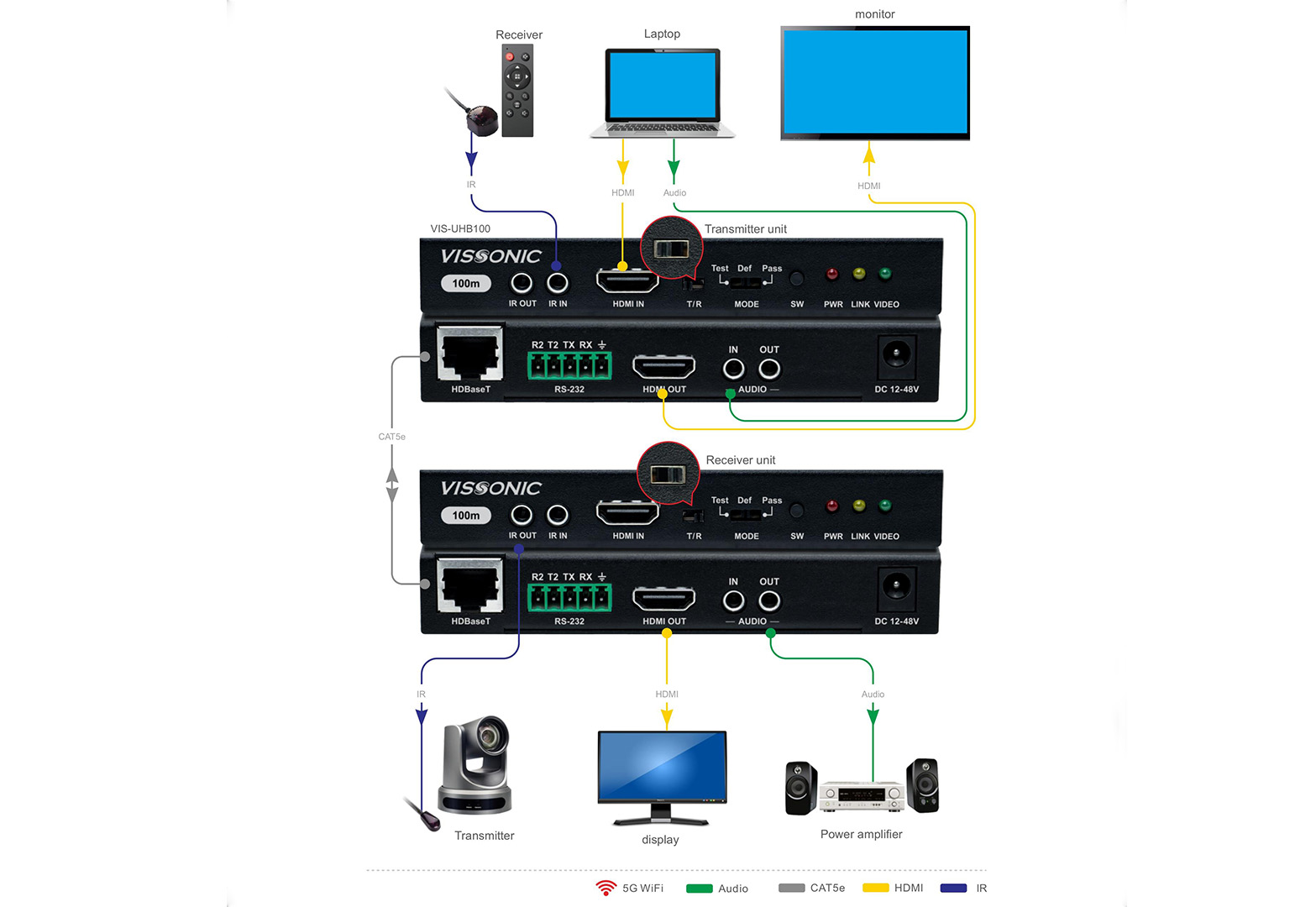

● HDMI Loop-Out: Synchronized multi-display output in transmitter mode.
● Three Engineering Modes: Signal Generation, upscaling, pass-Through.
● Compatible with VISSONIC M5, X9, X9-A, and VS series HDBaseT transmitter & receiver cards.
●4K@60Hz up to 40m, 4K@30Hz up to 70m;
● Supports 4K@60 4:4:4 input/output, HDMI 2.0, HDCP 2.2 for clear video and color accuracy;
● Support bi-directional analog audio;
● Built-in test patterns with multiple presets for easy testing and debugging;
● Selectable sending/receiving modes; HOST for sending, DEVICE for receiving;
● HDMI output in sending mode supports loop-out for multidevice synchronization;
● EDID management with internal or pass-through EDID options;
● POC power supply to eliminate extra power cables and simplify installation;

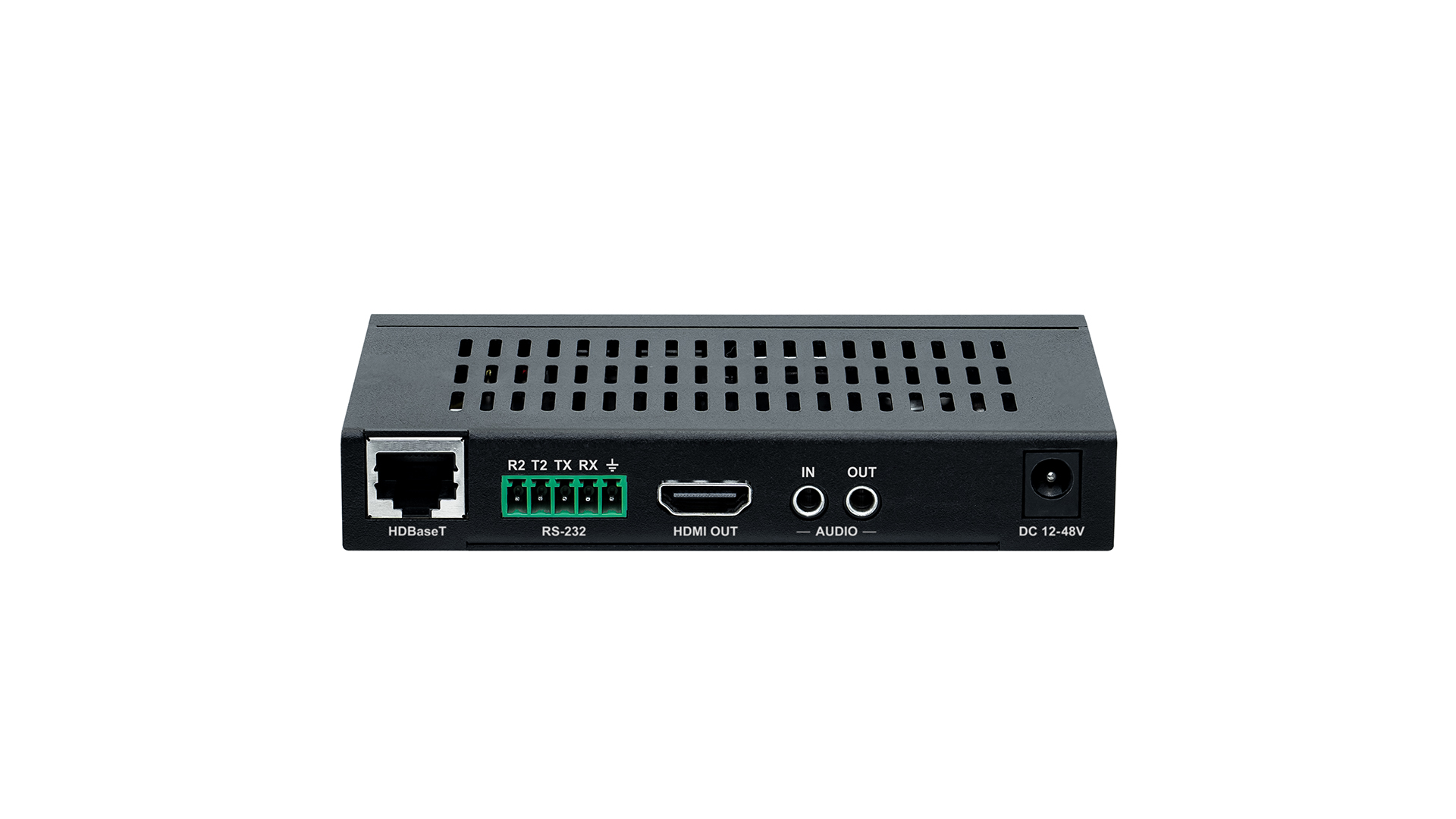

● Supports CEC/IR/RS232 passthrough;
● Input equalizer adjusts HDMI signals for long distance, lowquality cables, or weak source devices.
