11.6" Paperless Flush-mount Multimedia Conference Unit


NETLINK Paperless Multimedia System 11.6" Paperless Flush-mount Multimedia Conference Unit

Modular structure

Flush mount design

11.6-inch color touch screen

Hidden wiring at the bottom

Wired 1+63 simultaneous interpretation and voting

VIS-PMU-F is a paperless multimedia conference system specially tailored for party and government, public institutions and large  group enterprises to cope with the increasing number of expert meetings, executive meetings, review meetings, training meetings, summary meetings and so on.

Traditional meetings print a large amount of meeting materials and consume a large amount of paper each time. A large amount of manpower and time before the meeting are wasted, which not only increases the financial cost, but also does not adapt to the development of the information age.

VIS-PMU-F paperless multimedia conference system uses display screen instead of traditional paper, uses network technology to get through the information of each seat, and realizes information sharing and conference interaction. Designed with flexible, practical, efficient and energy-saving  concepts has the functional  Features: of "reservation before the conference", "guidance and assistance during the conference", "summary and export after the conference",  and realizes efficient green conference

Related Products:

Related recommendations:
Professional Video Conferencing EquipmentWireless conference unit

● Equipped with a 11.6-inch 1920×1080 full HD LCD touch screen, 16:9 display ratio, providing a better document viewing experience, capacitive touch screen, support for multi-touch, improve operating experience.

● Adopt standard CAT5e with RJ45 connector as the connection cable, which is convenient for standardized engineering wiring installation and maintenance.Attached installation clamp makes the system more stable and firm.

●  The modular structure design supports the expansion of hardware modules at any time according to project needs and user needs, including: gooseneck microphone module, voting module, IC card module, speaker module and other customizable modules for combination.

● The connecting cable can be selected from the bottom or the rear of the unit to meet various engineering needs.

● Support a variety of gooseneck microphones of different lengths, flexible selection according to the needs of the conference.

● Three-key, five-key voting function, customizable voting type, simultaneous interpretation function, with 64-channel selector, display language type and channel(the channel can be selected only after insert the earphone).

● RFID card identity authentication, sign-in, discussion, voting(Optional).

● Internal high fidelity loudspeaker.

● Head-set interface with volume adjust.

● The unique AUDIO-LINK digital ring network technology achieve full-digital signal transmission and processing, anti the RF interference from cell phone or similar devices.

● The fan-free design of the controller and power supply expansion equipment ensures that there is no fan noise; the unit touch button design makes the microphone ON/OFF no longer generate noise.

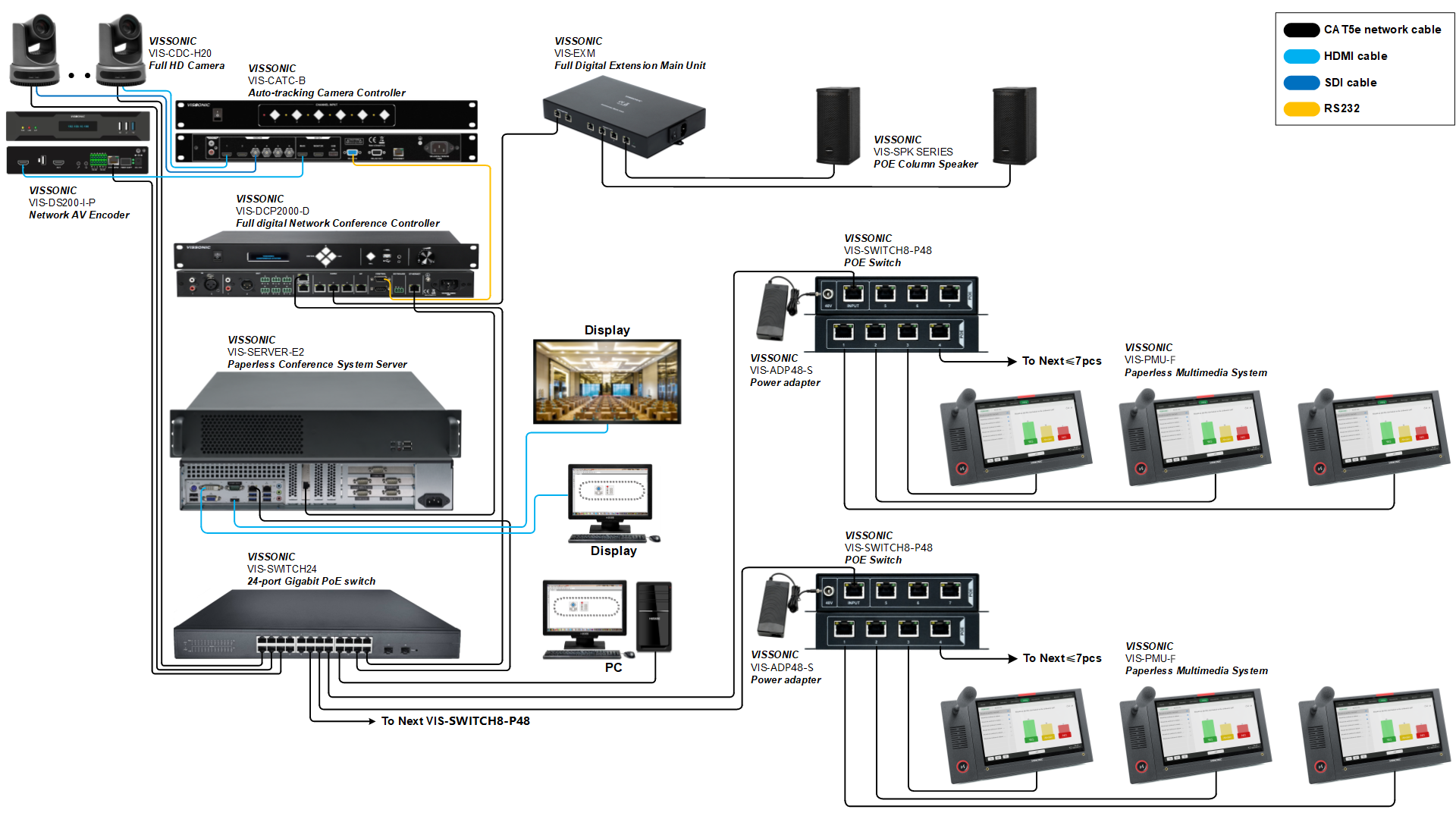

● "Hand-in-Hand-Loop-Network" connection makes the system always working perfectly and more reliable.

● The sensitivity of the unit microphone and 8 segment equalizer EQ adjusted independently.

● Time and date display function, and can display speaking time, countdown speaking, etc.

● All units can be selected as chairman unit hardware, and then use the conference management software to reset them to the chairman or delegate unit according to actual conference needs.

● The delegate unit can be set as a VIP unit through the application software, and up to 32 VIP delegate units can be set. As long as the total number of microphones in the system does not exceed 8, the VIP delegate unit can be turned on freely.
