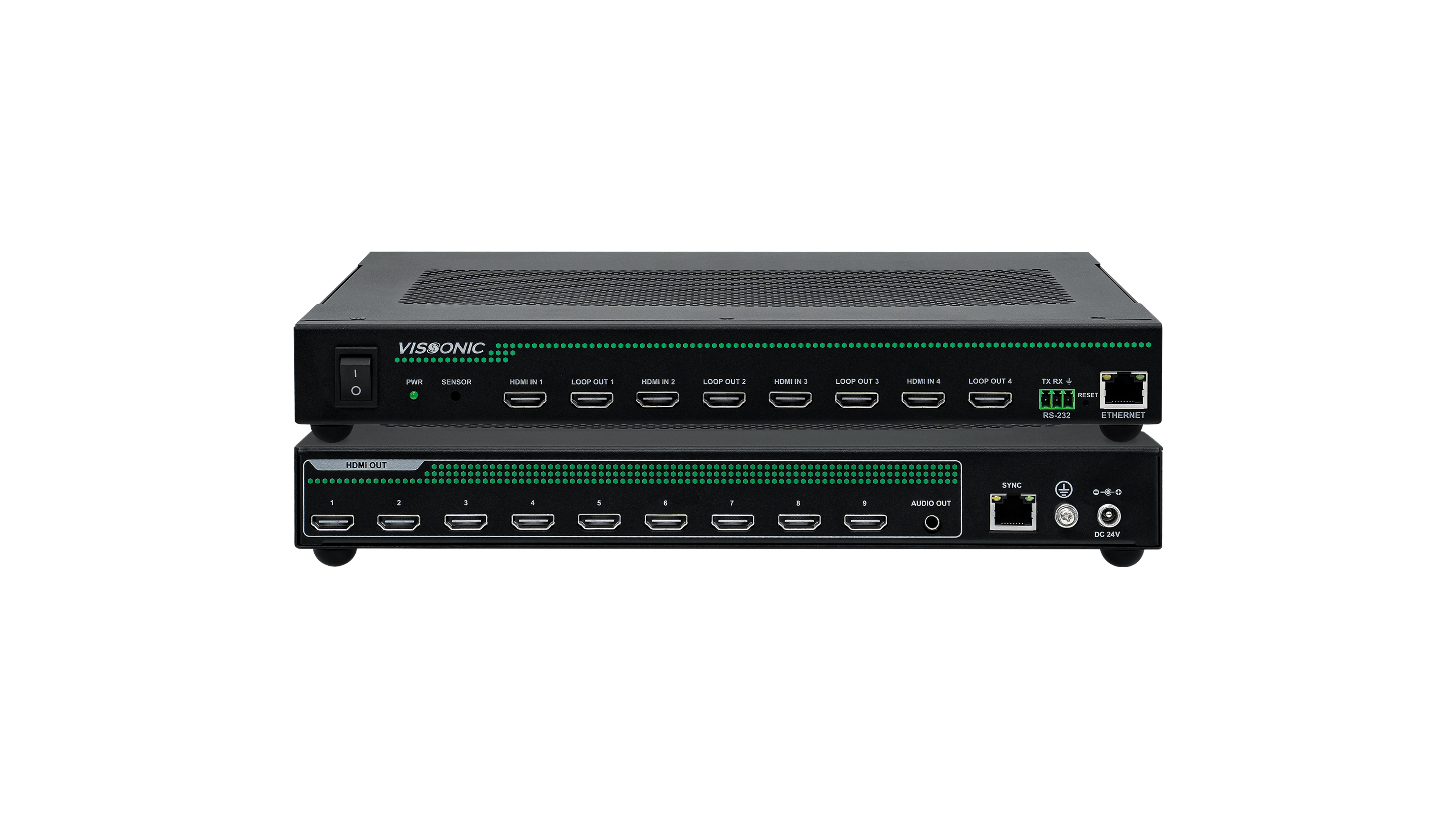

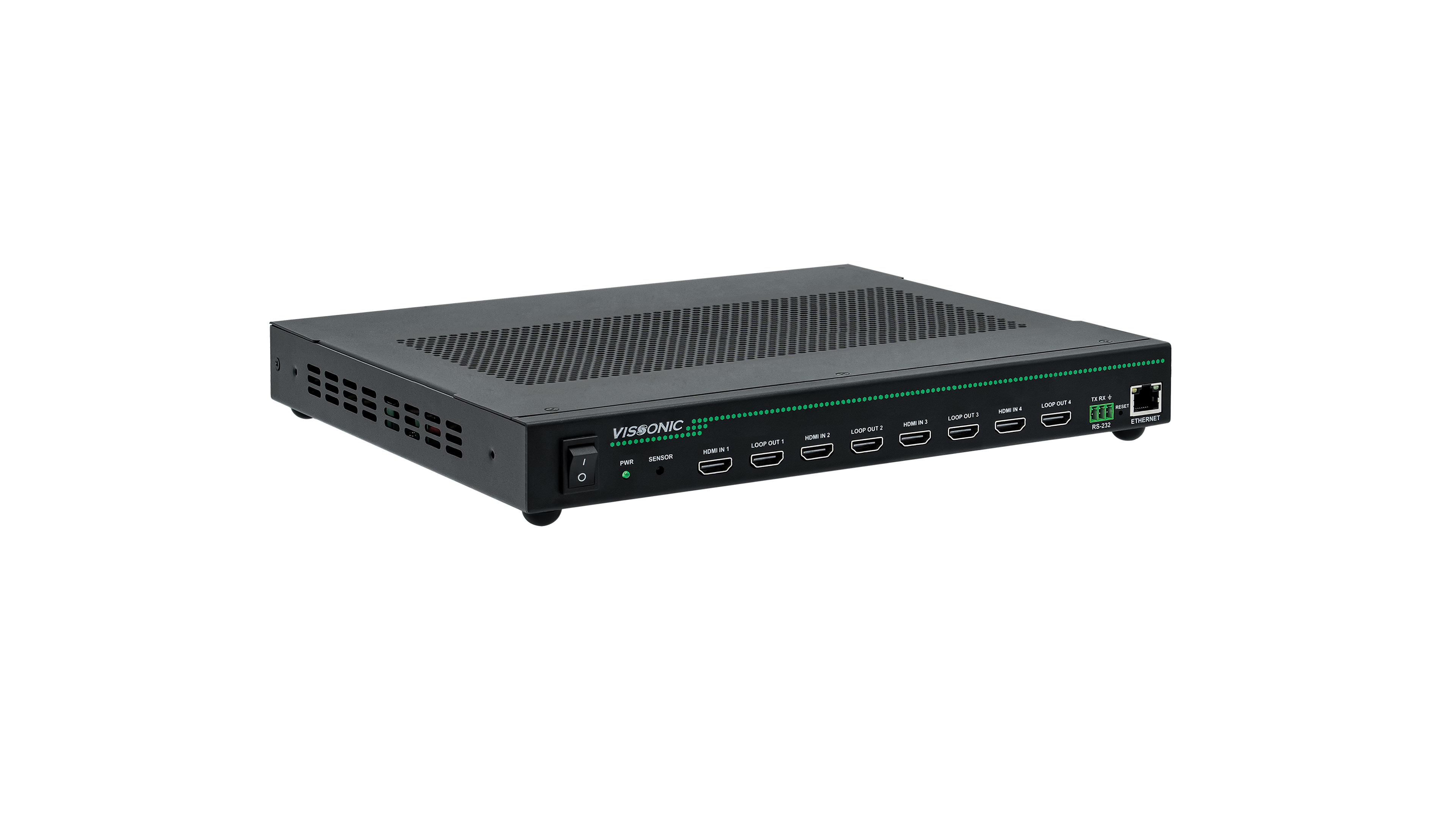

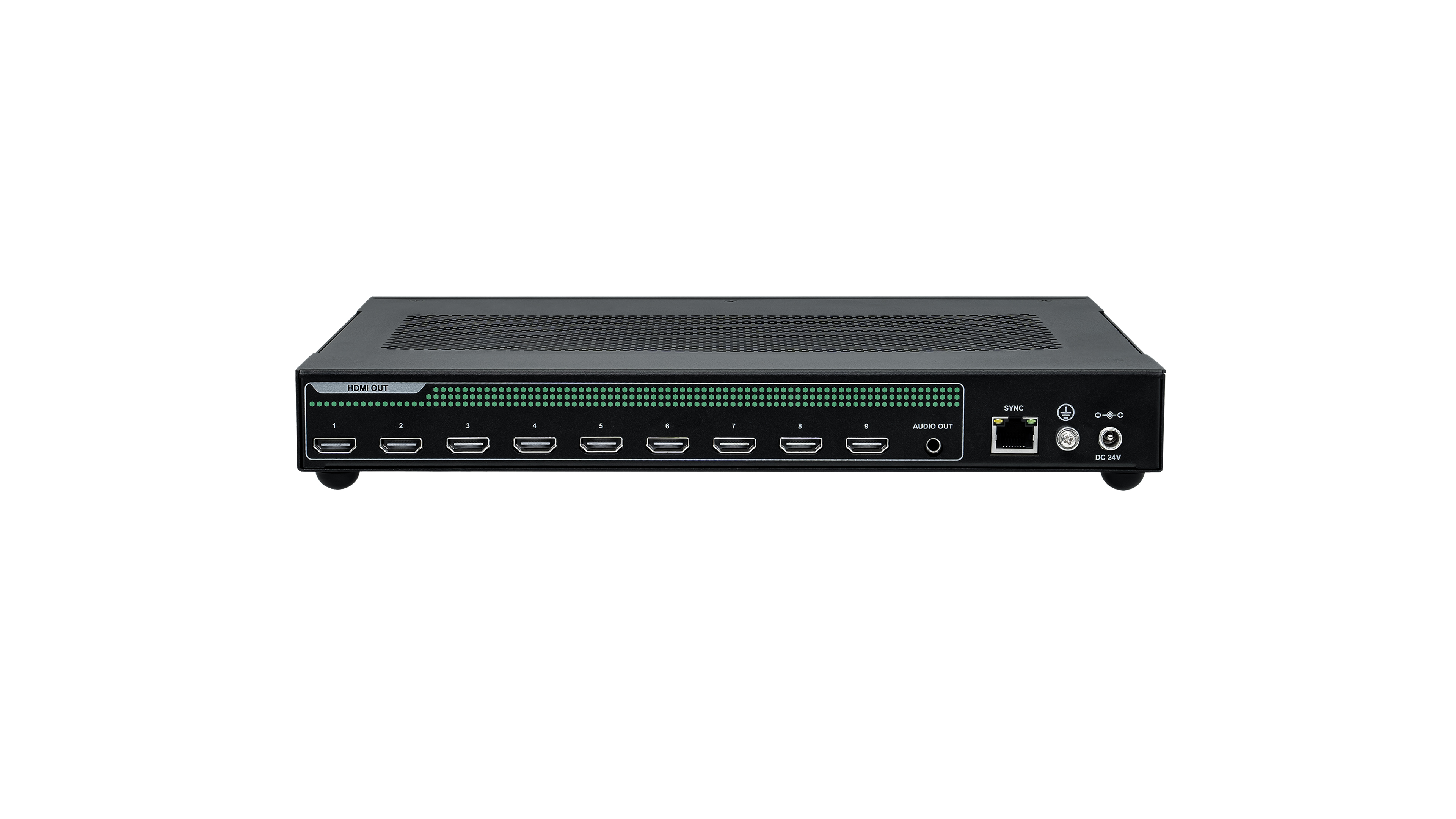

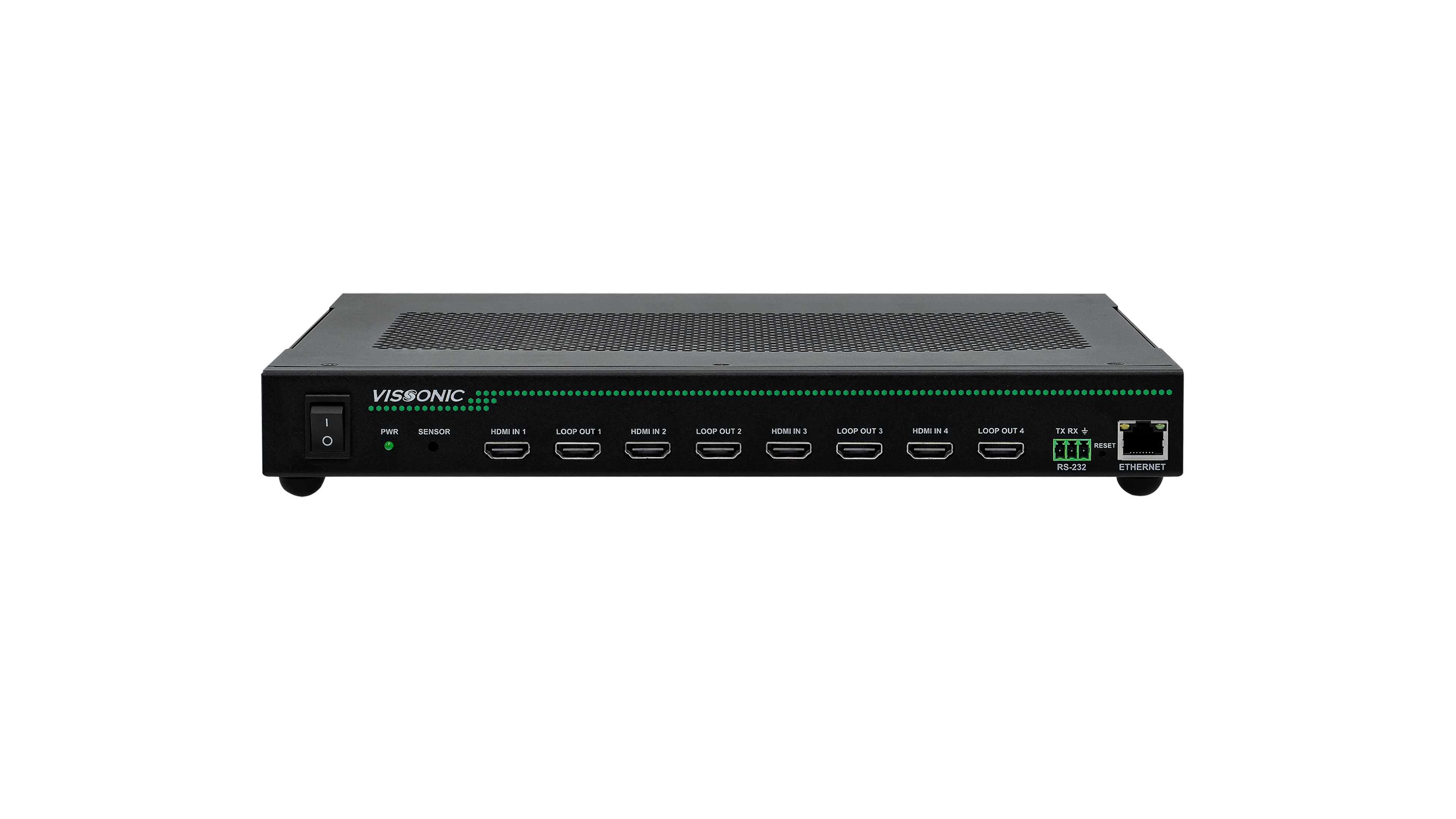

4x9 Seamless Video Wall Processor
VIS-UHD0409-VW-S
Multi-window roaming
4K HDMI input
Multiple control methods
Image rotation & loop-out
Product Introduction
The VIS-UHD0409-VW-S video processing device is designed for seamless splicing applications. It offers features like multi-window roaming, adjustable display positions, and loop-out design for larger video walls. Supporting image rotation and various controls, it's ideal for professional audio-video processing and display scenarios.
Features
● 4K@60 4:4:4 input supports HDMI 2.0 and HDCP 2.2, ensuring clear and accurate color video.
● Maximum output resolution of 1920x1200@60Hz, supports HDMI 1.4 and HDCP 1.4, and allows point-to-point display.
● Supports flexible multi-screen presentation, image stitching, and roaming of up to four windows.
● Adds scrolling subtitles for dynamic video wall messaging.
● Input logo display for input recognition of specific languages/fonts.
● 5mm analog audio output can be assigned to any external HDMI audio device, such as a mixing console.
● Supports multiple control methods such as serial port, infrared remote control, upper computer, and web interface, providing convenient operation.
● Allows 90°, 180°, and 270° rotation to accommodate different installation angles or display requirements.
● Splicing synchronization ensures perfect alignment of all output units.
● Generates input test images for engineering debugging.
● Generates output test images to verify if the output ports are correctly connected to the display devices.
● Provides +5 VDC, 250 mA power for external HDMI output peripherals.
● Input equalization adjustment compensates for signal loss in challenging setups.
● Flexible input configuration EDID management, supports copying the monitor's EDID to the input, offers multiple built-in EDID options, and updates existing EDID files to the input.

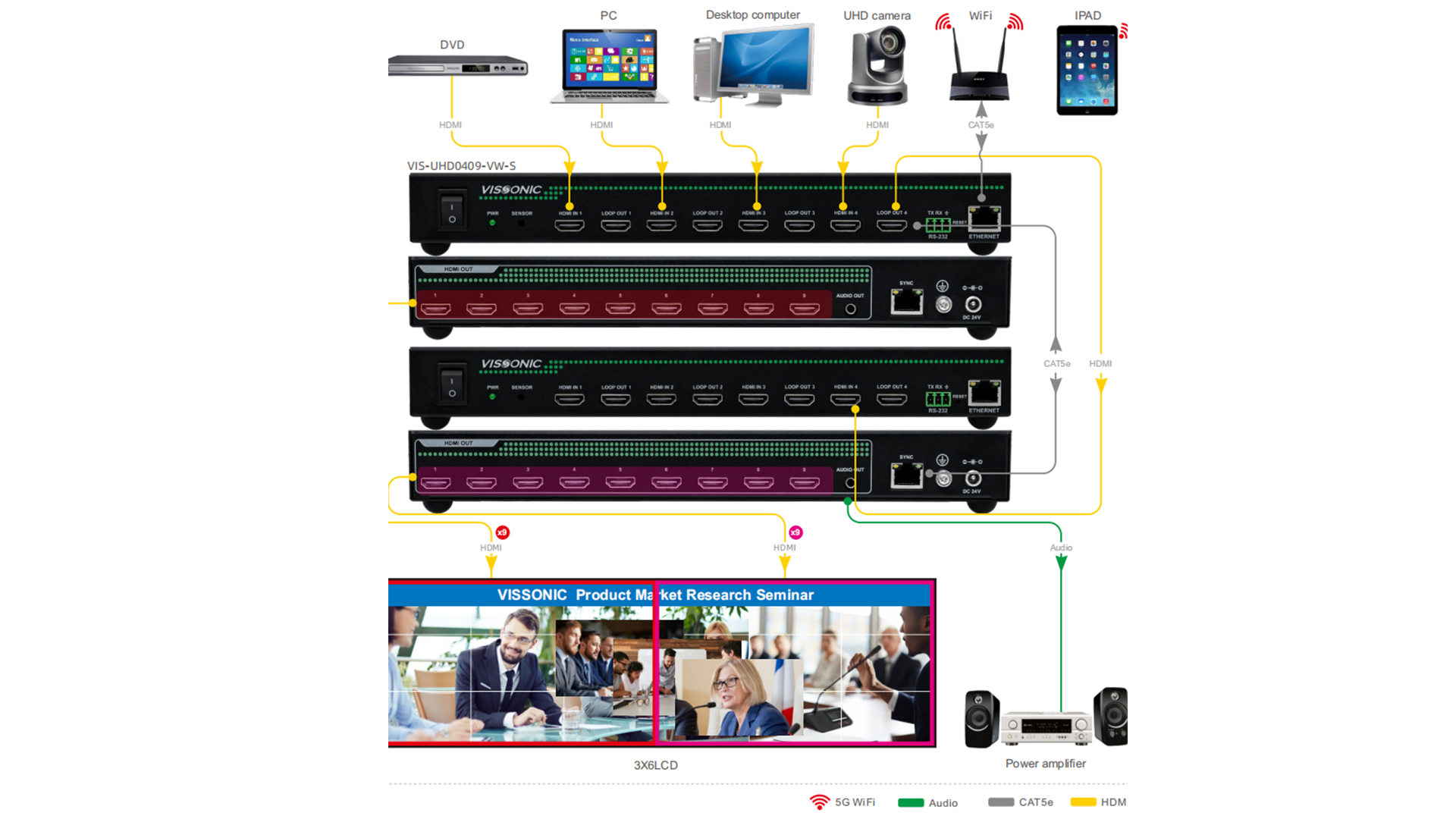

● HDMI loop-through for transmitting HDMI signals between devices, facilitating larger video wall systems.
● Supports DHCP for automatically assigning IP addresses to devices.
● Supports input volume adjustment and one-touch mute operation.
● Adjustable input HDCP version.
● Software supports multi-user management and login, allowing different management permissions and control of different ports for various users.
● Supports preset management for one-click saving and recall of presets.
