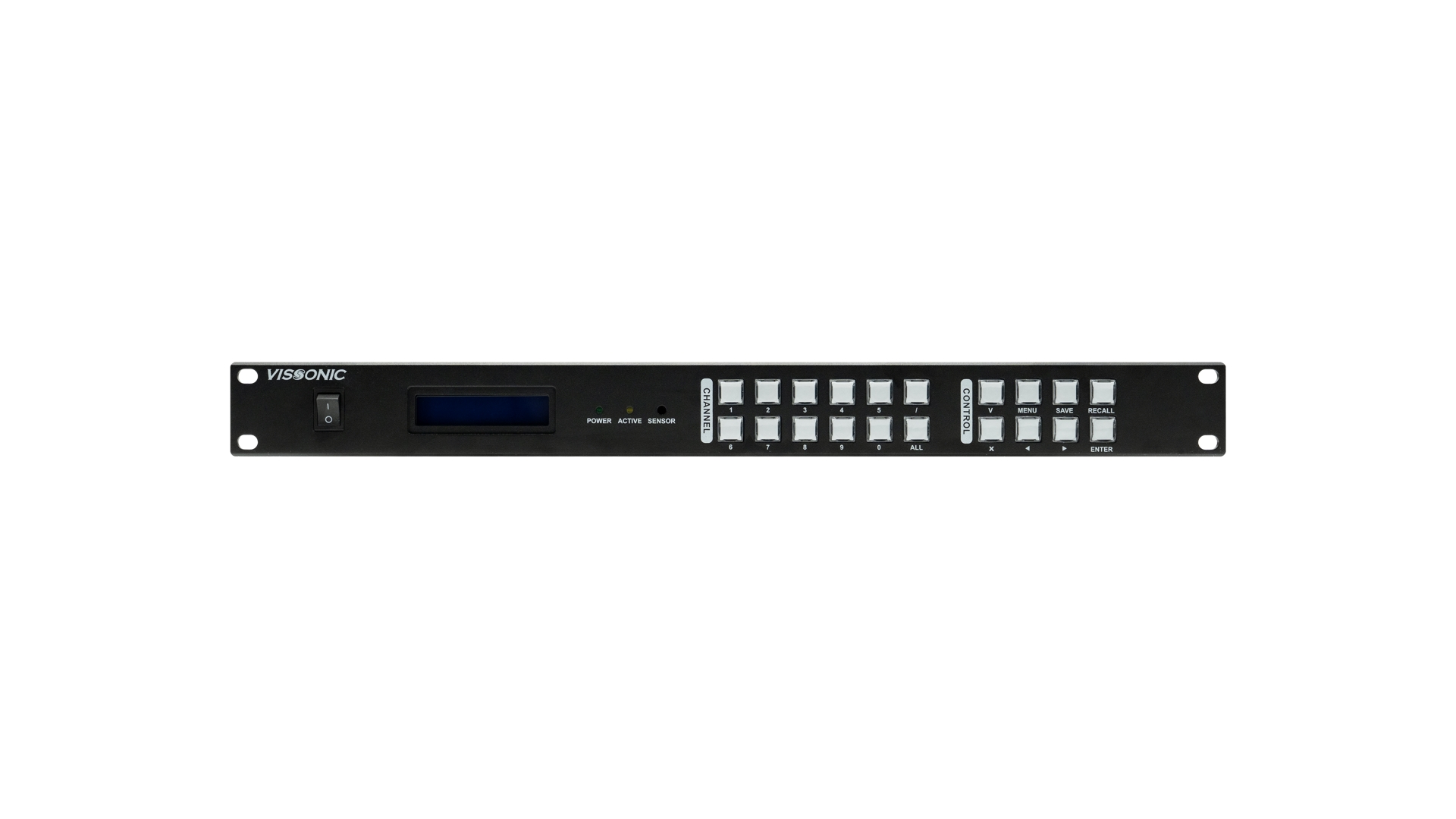

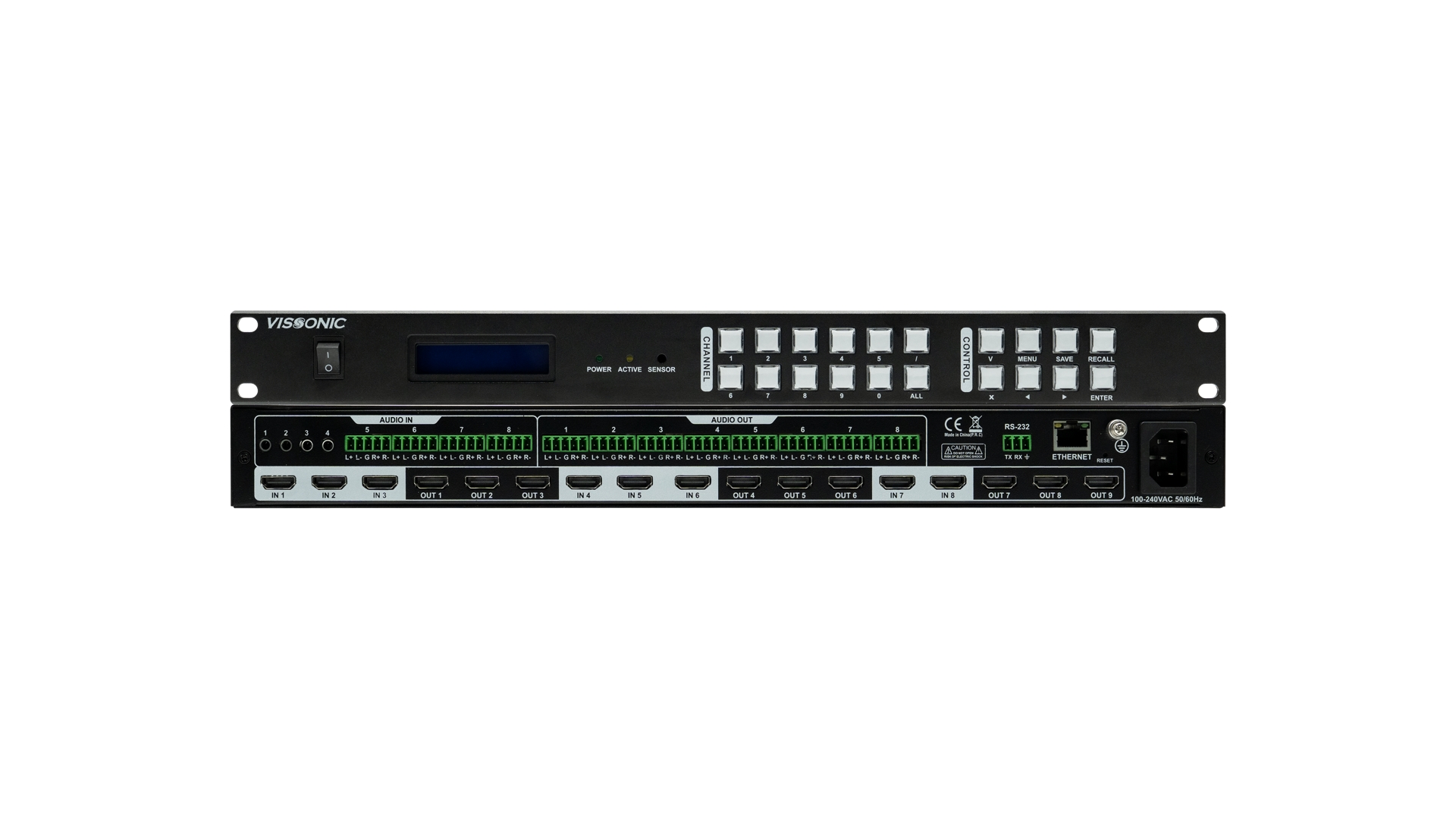

Compact Video Wall Processor

· 8 HDMI inputs and 9 HDMI outputs with real-time seamless switching;
· 4×3.5 mm analog audio inputs, 4 balanced Phoenix analog audio inputs, and 8 balanced Phoenix analog audio outputs;
· Any output supports matrix, video wall, and split modes (with up to 3-way split);
· Supports multiple split-screen display layouts;
· Supports up to 4K@60Hz 4:4:4 I/O, compatible with HDMI 2.0 and HDCP 2.2;
· Supports EDID auto-detection for optimal display resolution;
· Supports EDID management with built-in EDID files and display EDID read/write;
· Supports input image cropping for partial signal display;
· Supports input image logo overlay;
· Built-in signal generator with 11 types of professional test images I/O channel;
· Supports up to 5 UHD images as input sources or background images when no signal is present;
· Supports seamless matrix or single-layer video wall output;
· Supports synchronized LED/LCD video wall processing, up to 3×3 or 2×4 layouts;
· Video walls support scrolling text display;
· Audio and video can be switched independently;
· Supports web control and Android/iOS app control;
· Software-based per-input audio level adjustment with one-key mute support;
· Supports multiple control methods, including front-panel buttons with LCD, RS-232, TCP/IP, software and web control;
· Supports flexible multi-group splicing on any output port;
· DHCP can be enabled or disabled via software or the front panel;
· Output supports full-screen display and aspect-ratio scaling modes;
· Supports one-click output image freeze/unfreeze;
· Supports intelligent management, with software displaying input signal status, output display connection status, and current port status;
· Input HDCP version is adjustable, and output HDCP can be enabled or disabled;
· Supports one-click output image on/off;
· Supports multi-connection and multi-user management, with permission assignment and port allocation by user;
· Supports plan management with one-click save and recall;
· Supports one-click web-based upgrade.
