HDMI Seamless Matrix Switcher with Videowall & Multi-view

VIS-UHD0810-PVW


Loading...
4K Signal management Products HDMI Seamless Matrix Switcher with Videowall & Multi-view

8x10 HDMI Matrix

4K@30Hz 4:4:4 Supported

Real-Time Multi-View Preview

Multiple Control Options


Overview

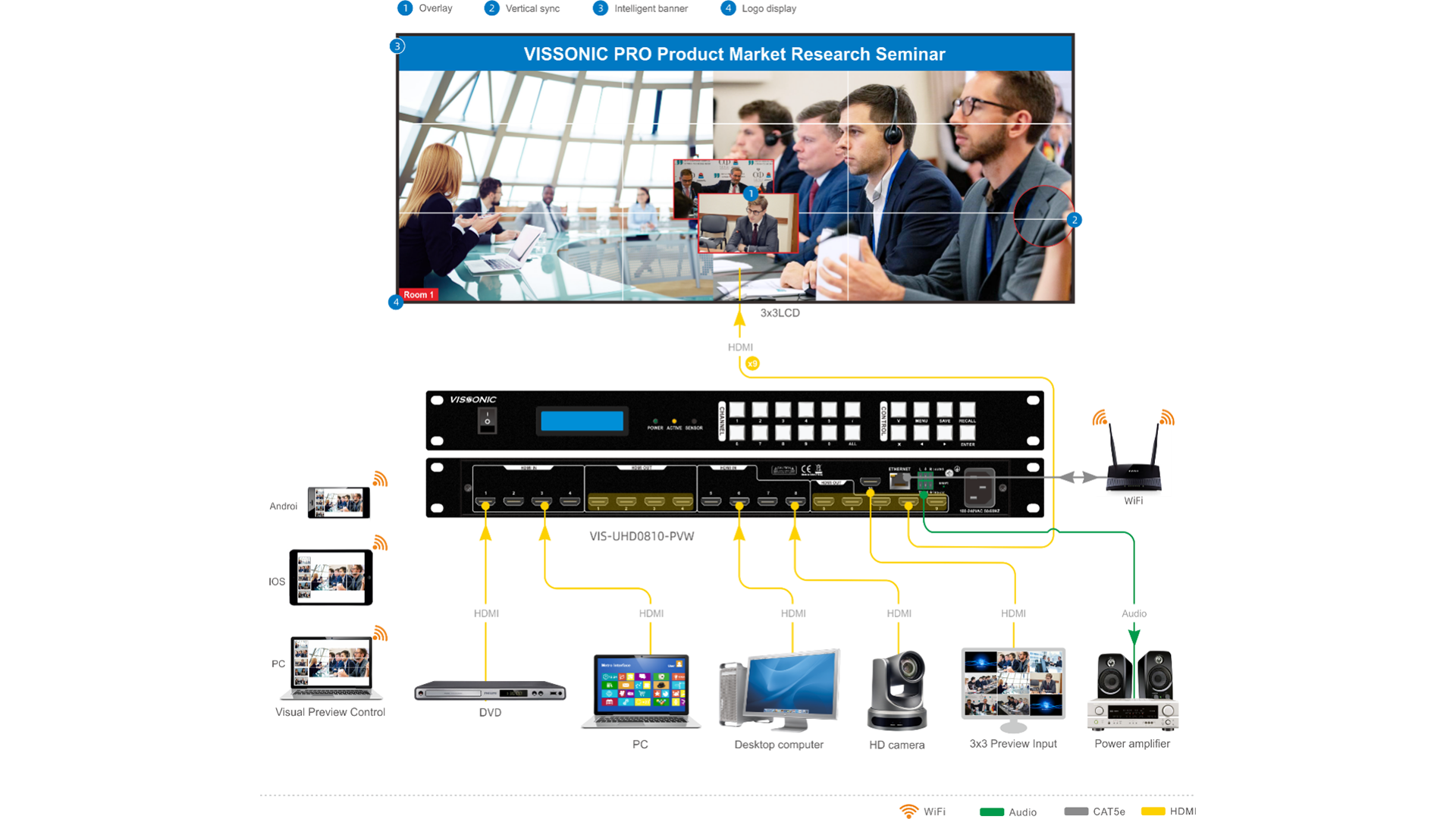

The VIS-UHD0810-PVW HDMI Seamless Matrix Switcher features 8 HDMI inputs, 9 seamless HDMI outputs, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output. It supports 4K@30Hz 4:4:4 and enables real-time seamless switching. It offers IP-based visual preview, flexible layout, and multi-layer display, as well as image editing, video wall splicing, multiple control methods, and intelligent management, making it ideal for diverse application scenarios.



Features

● Features 8 HDMI inputs and 9 HDMI outputs,, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output..

● Supports up to 4K@30Hz 4:4:4 input and output, compatible with HDMI 1.4 and HDCP 1.4.

● Offers flexible layout options, including windowing, roaming, scaling, seamless switching, and layer overlay.

● Each interface supports up to 8 layers, and the entire video wall supports up to 16 layers.

● Built-in IP-based visual preview enables real-time monitoring of input signals and displays current video wall status.

● Supports three display modes: Matrix, Video Wall, and Multi-View, catering to diverse application needs.

● Multiple control methods: front panel with LCD and buttons, RS232, TCP/IP, web interface, and PC software control.



Related Products:

Related recommendations:

● 8 HDMI inputs and 9 HDMI outputs,, and 1 HDMI preview output for 9-split signal monitoring, along with analog audio output.

● Input/output supports up to 4K@30Hz, 4:4:4, compliant with HDMI 1.4 and HDCP 1.4.

● Visual management with built-in preview for real-time monitoring and video wall status feedback.

● Flexible layout: customizable windows, roaming, scaling, seamless switching, and layer overlay.

● Layer management: up to 8 layers per output, max 16 layers across the wall (Inputs 1–8 share 16 layers; Output 9 shares 8 layers with Inputs 5–8).

● EDID management: selectable built-in EDID, reads and applies display EDID, supports updates.

● Image cropping: allows partial input image display.

● Logo overlay: supports custom logos with adjustable language, font, and size.

● Built-in test patterns: 11 professional signals for system diagnostics.

● Seamless LED/LCD video wall processing with sync display.

● Scrolling text overlay: supports multilingual, scalable fonts on video wall.

● Smart device monitoring: real-time input status, temperature, and version info.

● User access control: multi-user management with permission and port range settings.

● Preset management: save and recall scenes with one click.

● Bezel compensation: adjusts for display gaps to optimize visual performance.
