4K60 HDMI 4x4 Seamless Matrix and Video Wall Processor
VIS-UHD0404-VW
Seamless 4K Switching
Flexible Video Wall
Advanced EDID Management
Multi-Control Integration
Overview

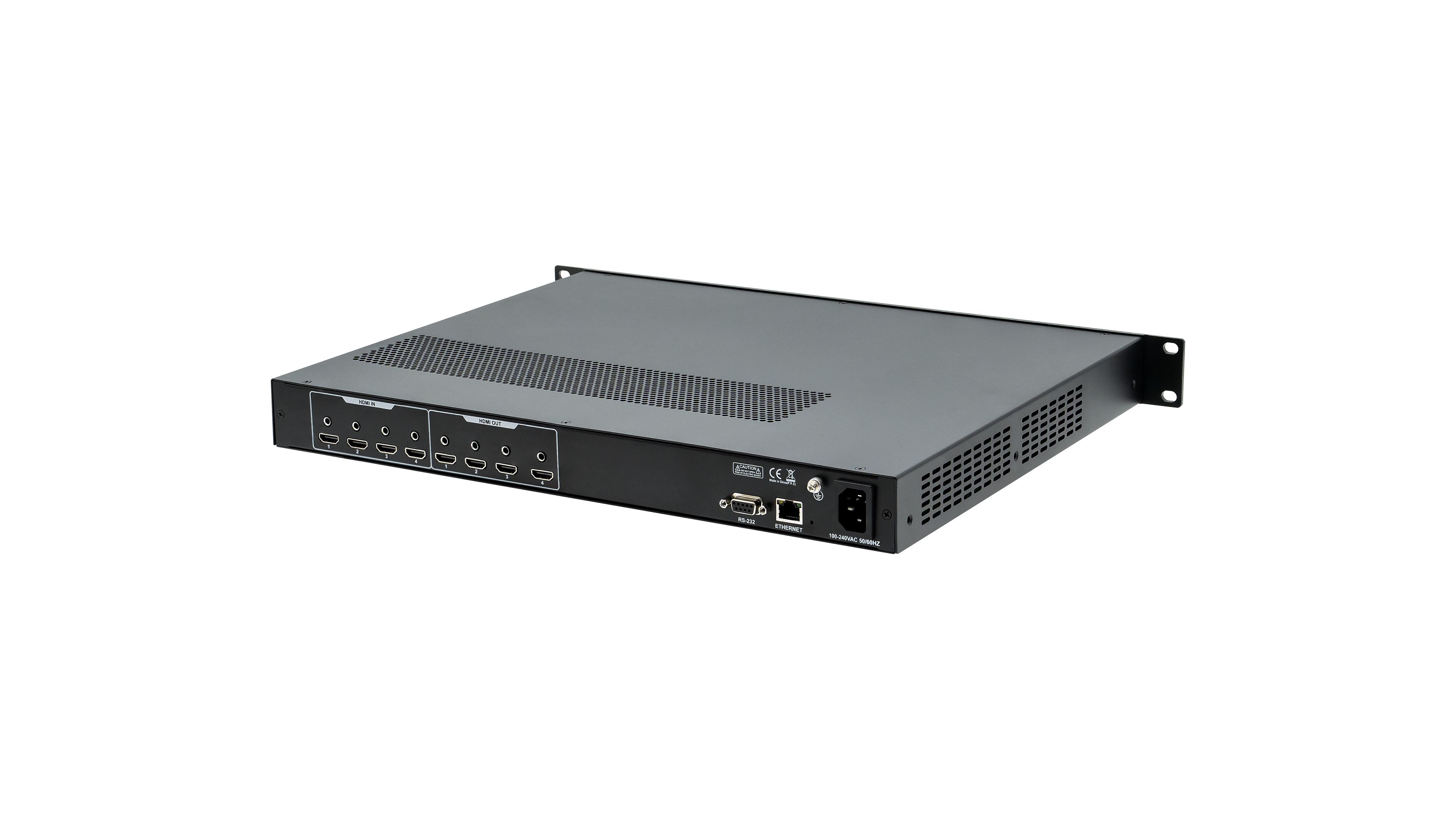

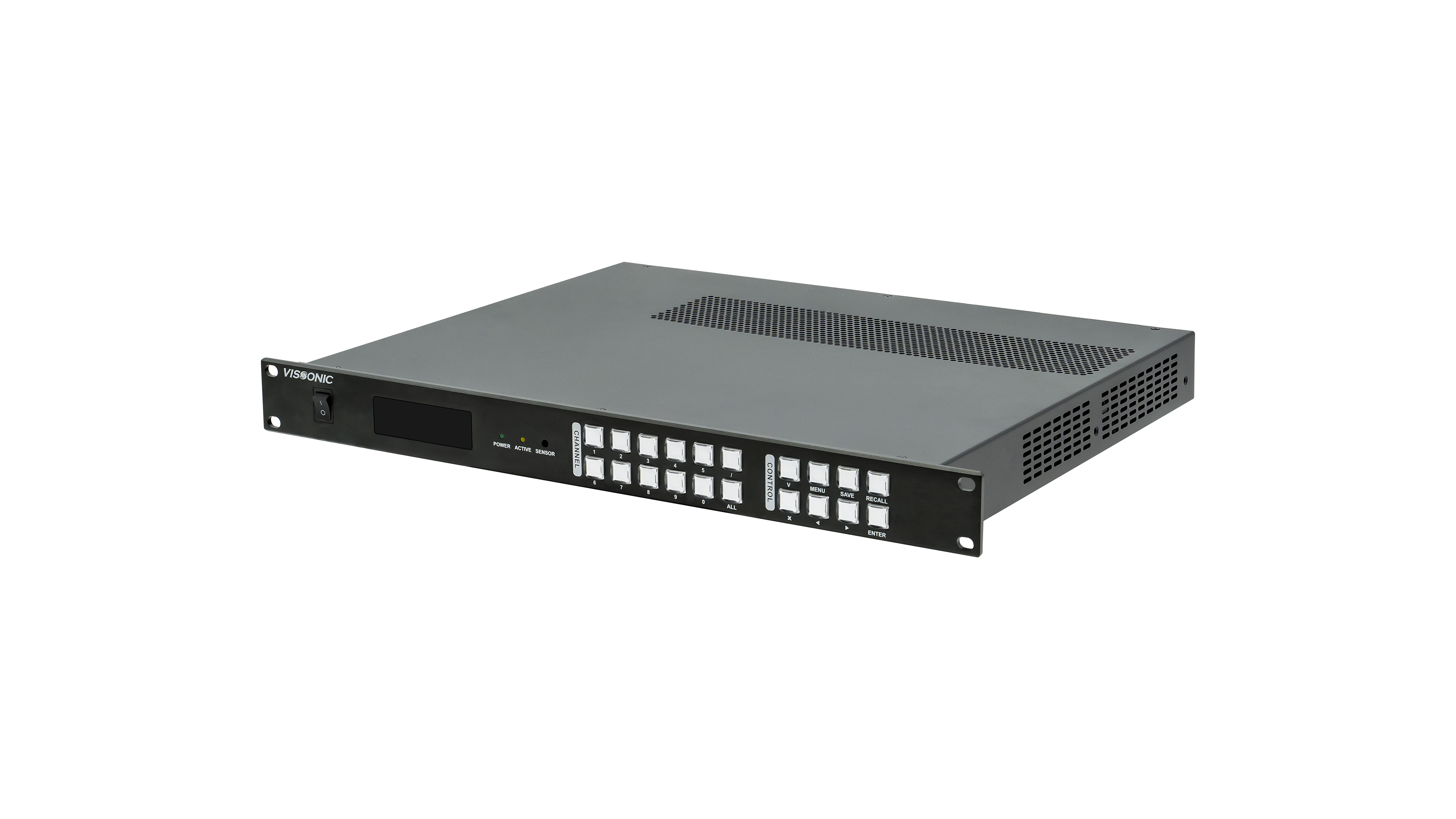

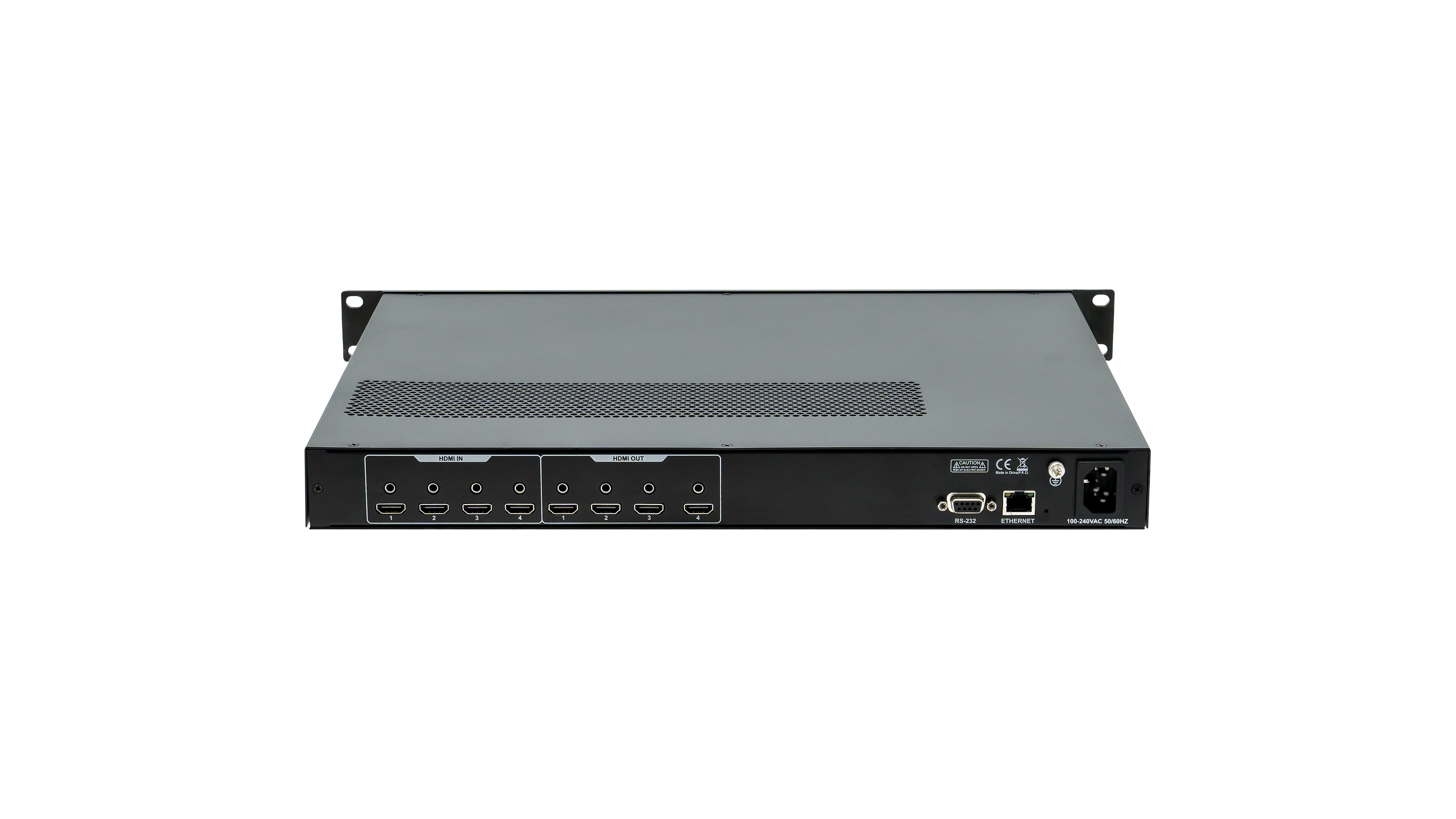

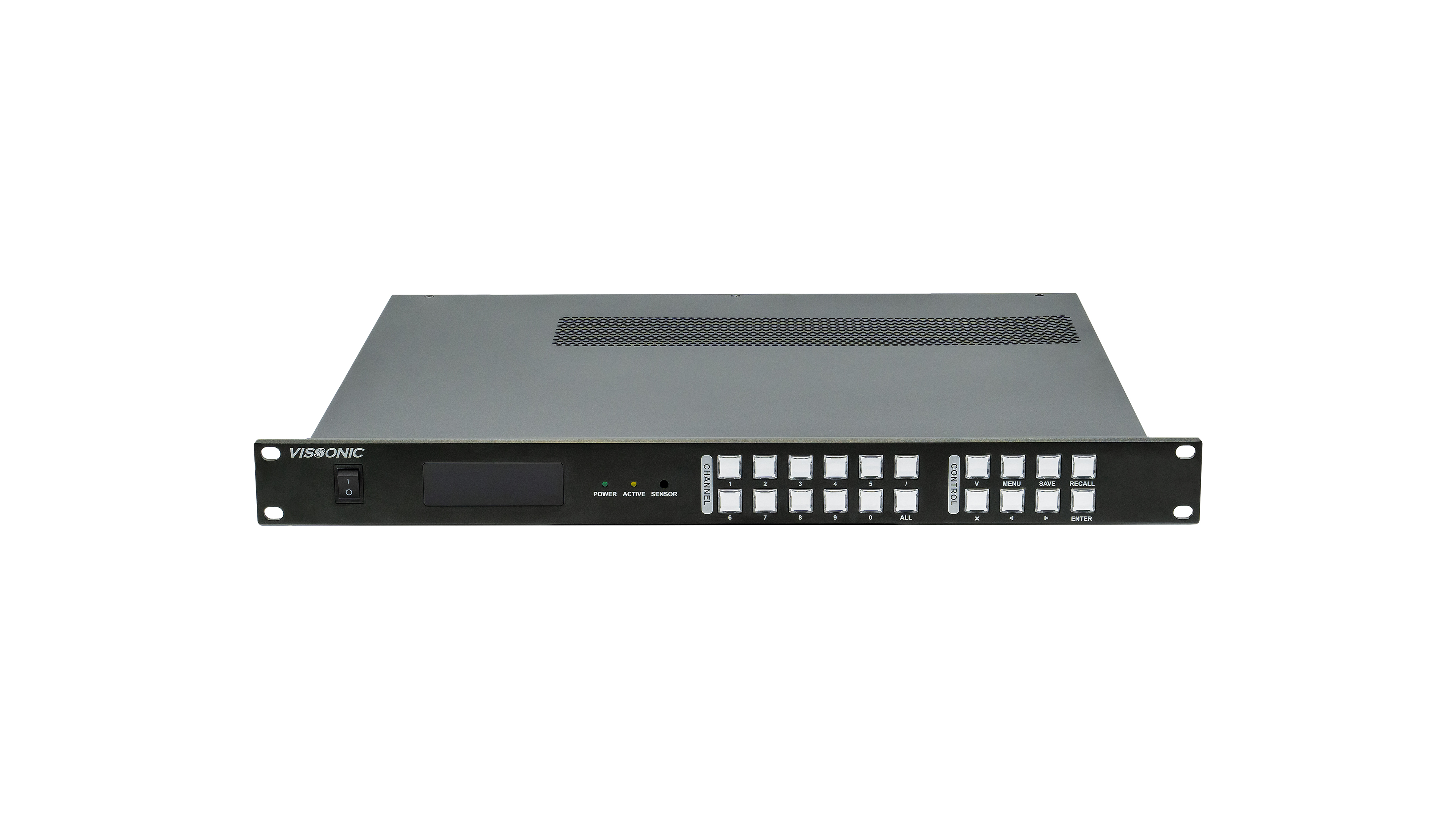

The VIS-UHD0404-VW is a professional seamless UHD video matrix switcher and stitching processor with 4 HDMI inputs and outputs. It supports resolutions up to 4K@60, 4:4:4, offers ultra-high data transmission rates, and allows creative video wall layouts via an intuitive Web GUI, based on a pure FPGA hardware architecture.
Features
● Seamless 4K@60Hz 4:4:4 Switching – It supports real-time, ultra-HD video switching with zero latency across 4 HDMI inputs and outputs.
● Intelligent EDID Management – The device automatically analyzes display EDID to output optimal resolution and supports custom EDID profiles.
● Flexible Video Wall Stitching – It enables seamless multi-screen configurations (up to 2x4) for LED/LCD video walls with gap compensation.
● Input Image Customization – Users can crop input signals or overlay logos for branding and creative layouts.
● Built-in Test Patterns – Includes 11 professional test images for signal verification on input/output channels.
● Multi-Control Options – Supports RS232, TCP/IP, web GUI, and front-panel controls for versatile operation.
● Audio & IR Independent Switching – Allows separate routing of audio and infrared signals alongside video.
● Real-Time Signal Monitoring – Software displays live input/output status and connection health.
● Preset & User Management – Offers one-touch preset recall and role-based access control for different operators.
● Dynamic Subtitles & Freeze – Supports scrolling text on stitched displays and instant output freeze/unfreeze.
● 4 HDMI inputs and 4 HDMI outputs with real-time seamless switching;
● Input and output support up to 4K@60, 4:4:4, compatible with HDMI 2.0 and HDCP 2.2;
● Intelligent analysis that automatically analyzes the EDID of display devices to output the best resolution;
● EDID management that supports selecting from multiple built-in EDID files, reading the EDID of output display devices to the input, and updating EDID files;
● Supports input image clipping, allowing part of the input image to be displayed as a signal;
● Supports adding logos to input images;
● Built-in signal generator with 11 professional test images on input and output channels;
● Outputs can be configured for seamless matrix output or single-layer stitching output;
● Supports synchronized stitching for LED or LCD large screens, with a maximum of 2x4 configurations;
● Supports scrolling subtitles on stitched large screens;
● Independent switching for audio and infrared;
● Supports graphical software control;
● Input volume control with adjustable channels and one-button mute;
● Multiple control methods including front panel buttons with LCD screen, RS232 control, TCP/IP control software, and web control for flexibility;
● Supports multiple flexible stitching configurations for any port to meet various application needs;
● Supports DHCP, with the ability to enable or disable via software or front panel;
● Various output modes available, including full screen and proportional scaling;
● Supports one-button freeze/unfreeze for output images;
● Intelligent management that shows real-time input signal status and output connection status on software;
● Adjustable HDCP version for inputs;
● One-button output screen on/off;
● Supports multiple connections and user management, with different management permissions and port management for different users;
● Supports preset management, with one-button save and recall of presets;
● Supports seam settings to compensate for gaps during screen stitching.
