Multi-View Seamless UHD Video Matrix Switcher

● 4× HDMI inputs and 1× HDMI output, supporting up to 4K@60Hz (4:2:0) or 4K@30Hz (4:4:4), compliant with HDMI 1.4 and HDCP 1.4;

● Seamless switching with no flicker, black screen, or visual artifacts for smooth presentation;

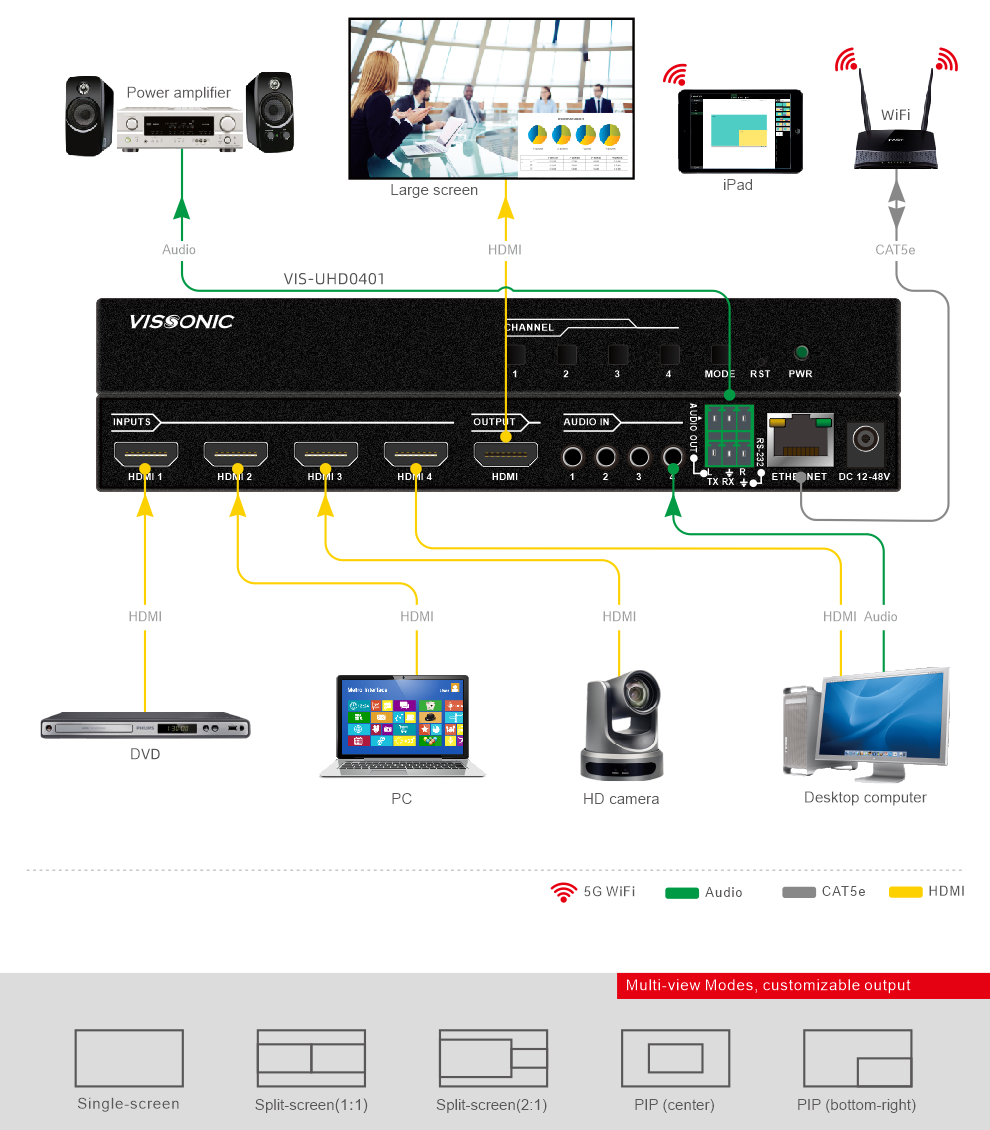

● Multi-view split with multiple layout modes;

● Customizable output layouts, allowing flexible multi-window configuration via a web-based canvas;

● Input labeling, allowing custom source names with support for any language and font;

● One-touch output freeze and unfreeze;

● One-touch output on/off control;

● Flexible switching logic, with configurable input priority for automatic source switching and true plug-and-play operation;

● Supports fade-in/fade-out switching effects;

● Video windows support 90°, 180° and 270° rotation;

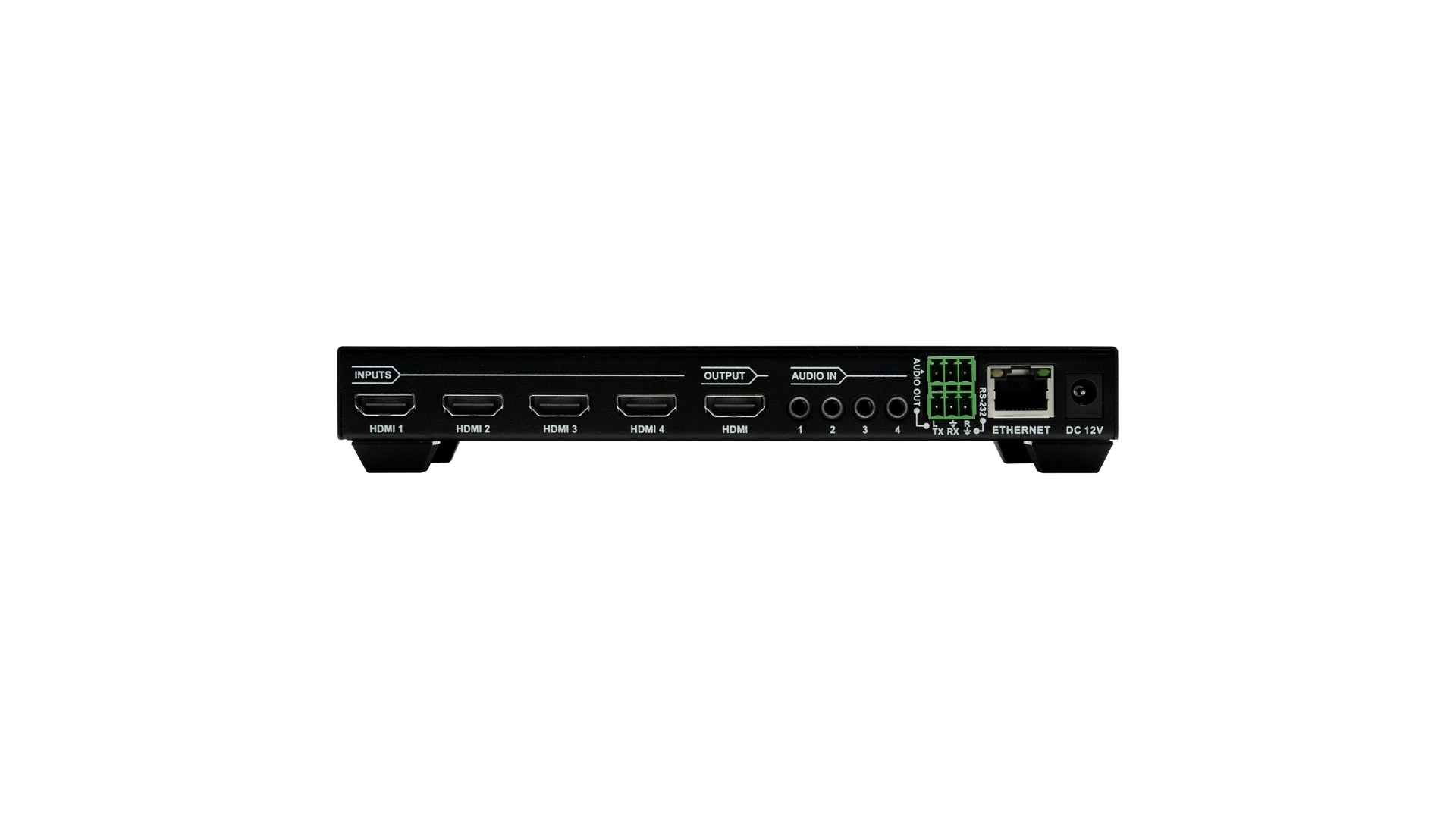

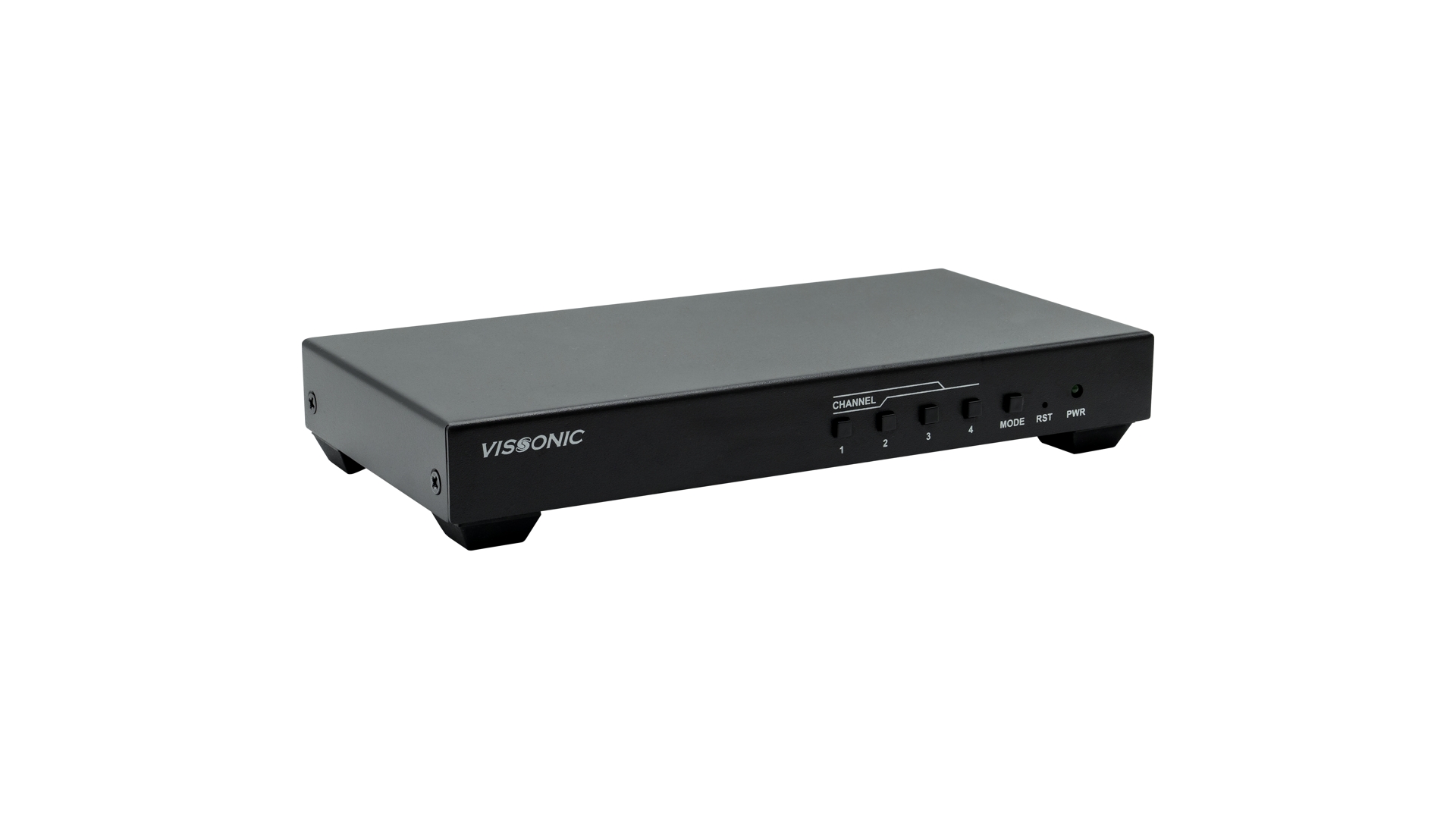

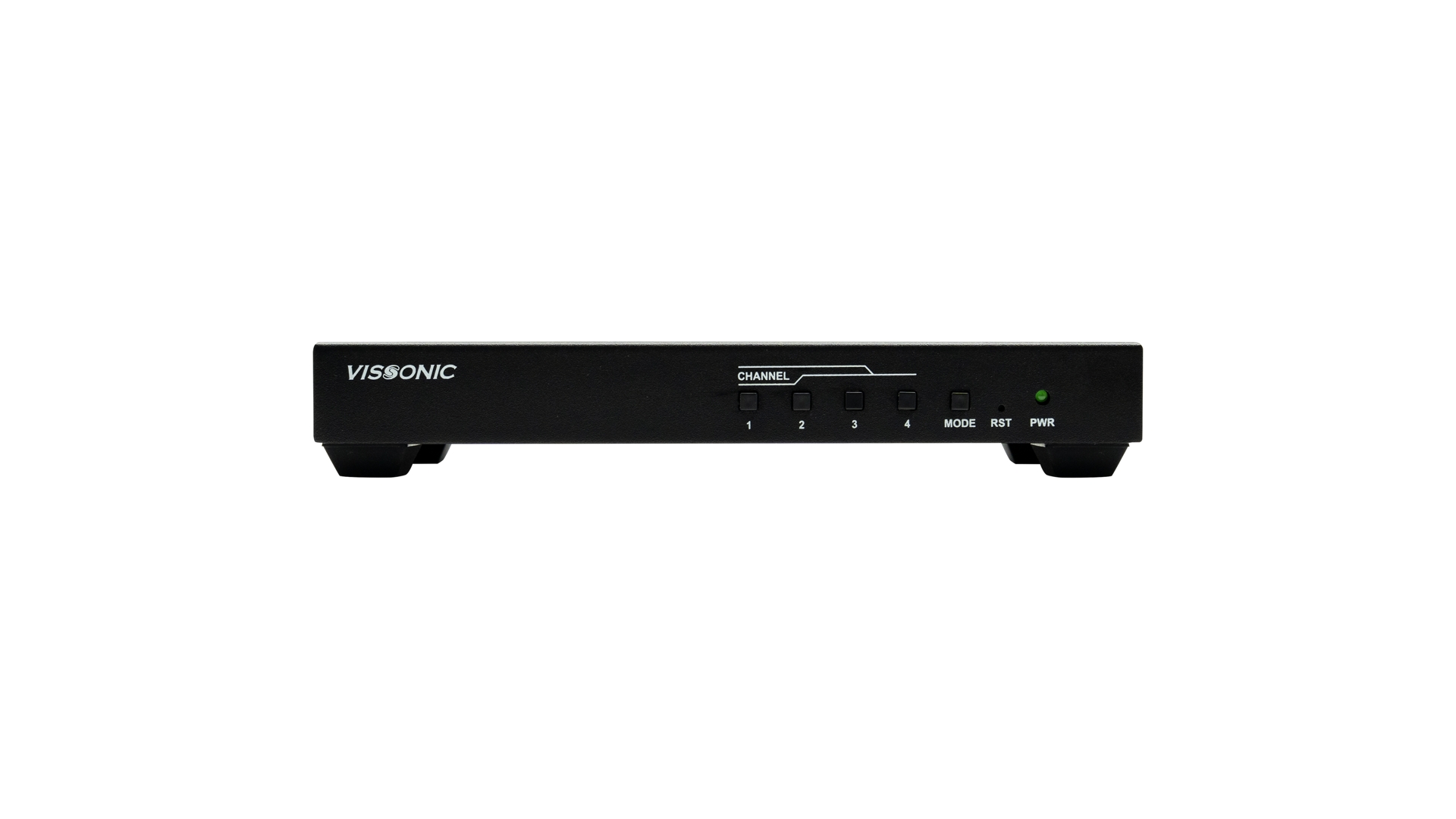

● Multiple control options, including RS-232, IR remote control, web interface, and front-panel buttons;

● Intelligent HDMI output analysis, automatically selecting the optimal resolution based on display EDID;

● Output scaling modes supporting auto full-screen and aspect ratio preservation;

● Real-time device status monitoring via the web interface;

● Supports analog audio de-embedding with analog or HDMI audio switching, and HDMI audio extraction;

● Provides +5V DC / 250mA power for external HDMI peripherals;

● HDMI input equalization, actively compensating for signal loss caused by long or low-quality cables;

● Advanced EDID management, with multiple built-in EDID options and EDID file upload support;

● Supports control via Android and iOS mobile applications;

● Web-based one-click firmware upgrade for simplified maintenance.
