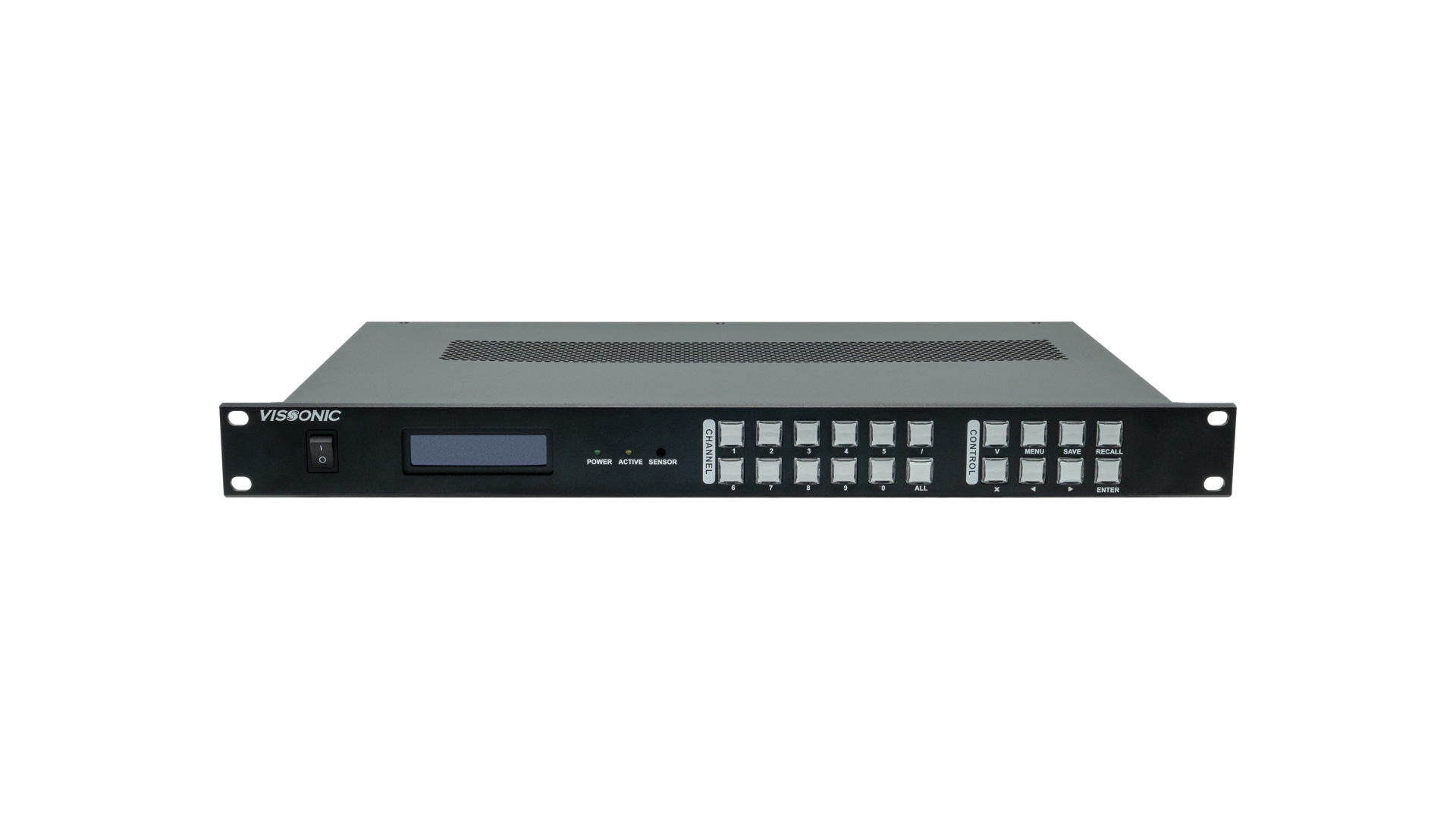

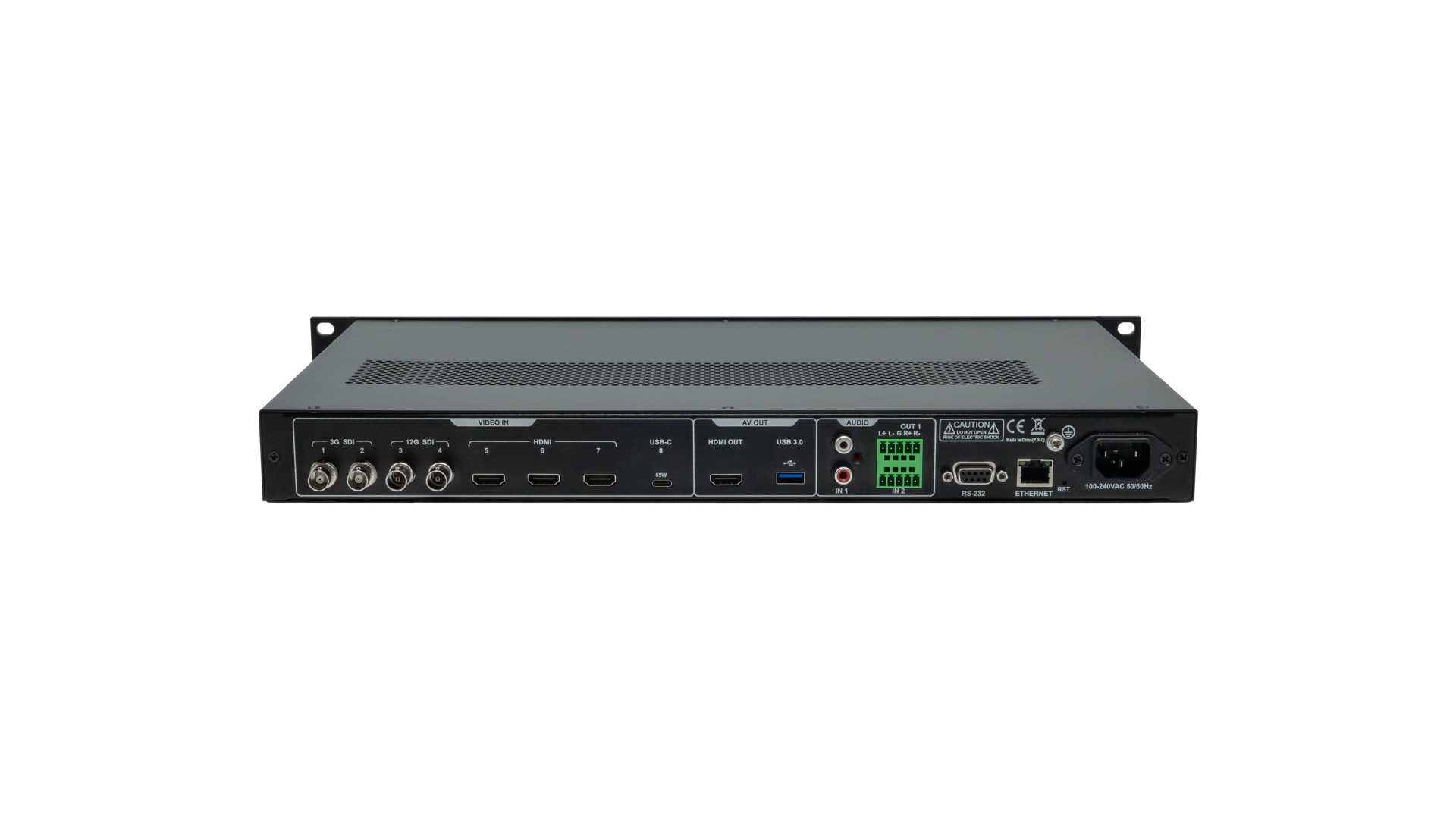

The VIS-CATC-C is a powerful camera auto-tracking processor supporting HDMI, USB-C, 3G-SDI, and 12G-SDI inputs up to 4K@60Hz (4:4:4). USB-C supports bidirectional audio/video transmission and 65W fast charging. Attendees can share content via HDMI or USB from personal computers to displays or remote conferences. It supports seamless switching, multi-view, custom layouts, image freeze, test patterns, EDID management, speaker countdown/time/name display, camera tracking, and RS-232, IR, web, and button control for conference and remote conferencing applications.
● 3× HDMI inputs and 1× HDMI output, supporting up to 4K@60Hz (4:4:4), compliant with HDMI 2.0 and HDCP 2.2.
● Full-function USB-C interface, supporting up to 4K@60Hz (4:4:4) input, DP 1.2, PD 3.0, and up to 65W fast charging, with bidirectional video capture and output.
● 2× 3G-SDI inputs, up to 1080p@60Hz; 2× 12G-SDI inputs, up to 4K@60Hz.
● Seamless switching with no flicker, black screen, or visual artifacts for smooth presentation.
● USB 3.0 video output, transmitting HDMI audio and video to PCs, smartphones, or tablets for preview or capture in Microsoft Teams®, Zoom™, and other conferencing platforms.
● Multiple control options, including RS-232, IR remote control, web interface, and front-panel buttons.
Related Products:
Related recommendations:
● 3× HDMI inputs and 1× HDMI output, supporting up to 4K@60Hz (4:4:4), compliant with HDMI 2.0 and HDCP 2.2.
● Full-function USB-C interface, supporting up to 4K@60Hz (4:4:4) input, DP 1.2, PD 3.0, and up to 65W fast charging, with bidirectional video capture and output.
● 2× 3G-SDI inputs, up to 1080p@60Hz; 2× 12G-SDI inputs, up to 4K@60Hz.
● 1× RCA audio input for conference controller connection; 1× balanced audio input and 1× balanced audio output.
● Seamless switching with no flicker, black screen, or visual artifacts for smooth presentation.
● Multi-view display, enabling simultaneous viewing of local content and remote video.
● Customizable output layouts, allowing flexible multi-window configuration via a web-based canvas.
● USB 3.0 video output, transmitting HDMI audio and video to PCs, smartphones, or tablets for preview or capture in Microsoft Teams®, Zoom™, and other conferencing platforms.
● Input labeling, allowing custom source names with support for any language and font.
● One-touch output freeze and unfreeze.
● One-touch output on/off control.
● Flexible switching logic, with configurable input priority for automatic source switching and true plug-and-play operation.
● Multiple control options, including RS-232, IR remote control, web interface, and front-panel buttons.
● Input test pattern generation for system commissioning and troubleshooting.
● Output test pattern generation to verify display and output connectivity.
● Intelligent HDMI output analysis, automatically selecting the optimal resolution based on display EDID.
● Output scaling modes supporting auto full-screen and aspect ratio preservation.
● Real-time device status monitoring via the web interface.
● Provides +5V DC / 250mA power for external HDMI peripherals.
● HDMI input equalization, actively compensating for signal loss caused by long or low-quality cables.
● Advanced EDID management, with multiple built-in EDID options and EDID file upload support.
● Supports speaker countdown or speaking time display; displays the current speaker's name with conference software.
● Supports control via Android and iOS mobile applications.
● Web-based one-click firmware upgrade for simplified maintenance.
