4K Intelligent Tracking Camera
VIS-CDC-20-4K
Conference System Accessories & Materials
20x Optical Zoom
Auto Speaker Tracking
4K@60fps UHD
Multi‑Interface Connectivity

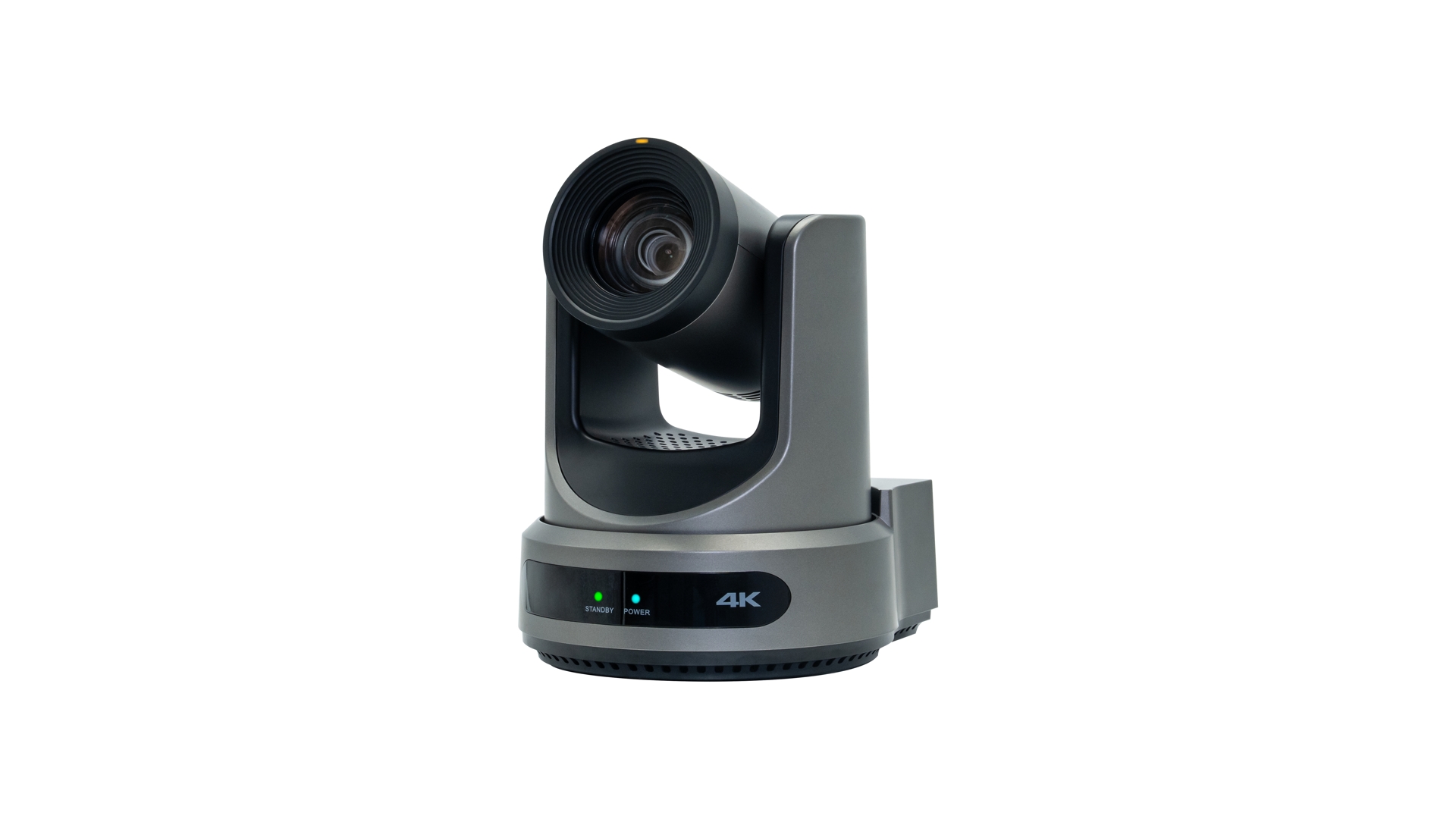

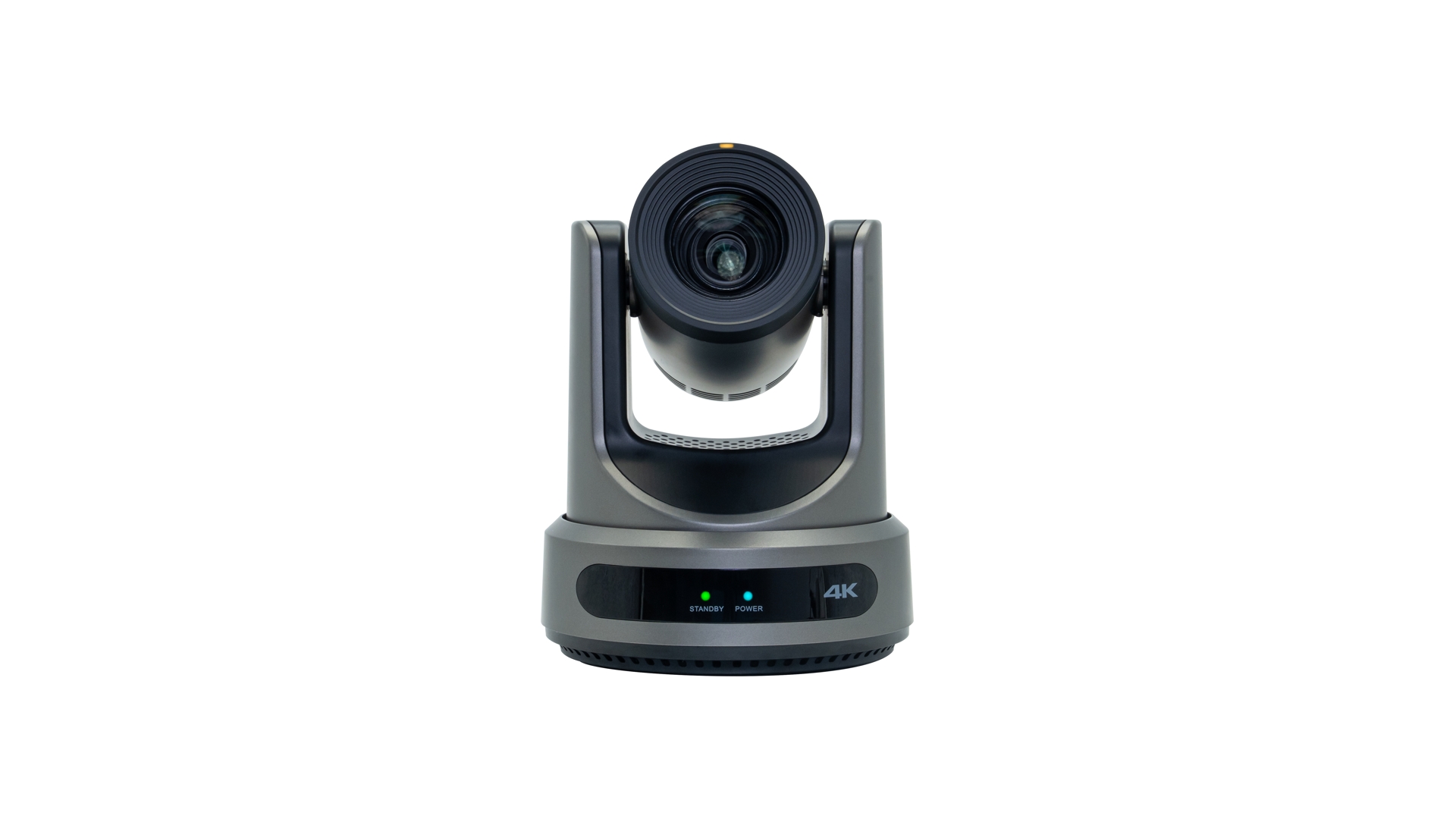

The VIS-CDC-20-4K is a 4K intelligent tracking camera designed for medium to large conference rooms. It features a large UHD CMOS sensor that delivers clear 3840×2160 resolution, and a 20x optical zoom lens with AI human-shape tracking for precise, automatic target tracking anywhere in the venue, enhancing the video experience. Launched by VISSONIC, this device offers a professional, efficient video solution for intelligent conferences.
● 1/1.8‑inch 8.42‑megapixel UHD CMOS sensor; 4K@60fps AI PTZ camera, backward compatible with 1080P/720P;
● High‑quality 4K ultra HD telephoto lens, supporting 20x optical zoom and a 60° wide‑angle horizontal field of view;
● Multiple control methods available via RS232, RS485, CAT5, or USB, etc;
● Supports HDMI 1.4b and 3G‑SDI for uncompressed video output;
● Supports automatic image flip for wall or ceiling installation;
● Equipped with HDMI 1.4b and 3G‑SDI (1080p30 up to 150m), supporting triple HD output via HDMI/3G‑SDI, USB, and LAN;
● 1/1.8-inch 8.42-megapixel UHD CMOS sensor; 4K@60fps AI PTZ camera, backward compatible with 1080P/720P;
● High-quality 4K ultra HD telephoto lens, supporting 20x optical zoom and a 60° wide-angle horizontal field of view;
● Features intelligent exposure image processing technology to effectively mitigate light interference from projectors, TVs, etc., on the image;
● Multiple control methods available via RS232, RS485, CAT5, or USB, etc;
● Supports HDMI 1.4b and 3G-SDI for uncompressed video output;
● High SNR CMOS combined with 3D noise reduction ensures clear images under low light conditions, with an SNR of 55dB;
● Supports automatic image flip for wall or ceiling installation;
● Auto sleep mode under 400mW protects the device; features plug-and-play, low latency, and simultaneous audio, video, and control transmission;
● Supports local recording to a USB drive without the need for an NVR;
● Equipped with HDMI 1.4b and 3G-SDI (1080p30 up to 150m), supporting triple HD output via HDMI/3G-SDI, USB, and LAN;
● Supports NDI|HX2 protocol, enabling low-latency, high-quality, frame-accurate audio and video transmission, real-time detection, interactive control, and flexible IP broadcasting mode. (Optional feature).
