Booth for Interpreter

VIS-BTH-D


Loading...
Booth for Interpreter Booth for Interpreter Booth for Interpreter
Digital IR Language Distribution System

Booth for Interpreter

Quick Tool-Free Assembly

ISO Standard Sound Insulation

Efficient Silent Ventilation

Complete Portable Kit


Datasheet

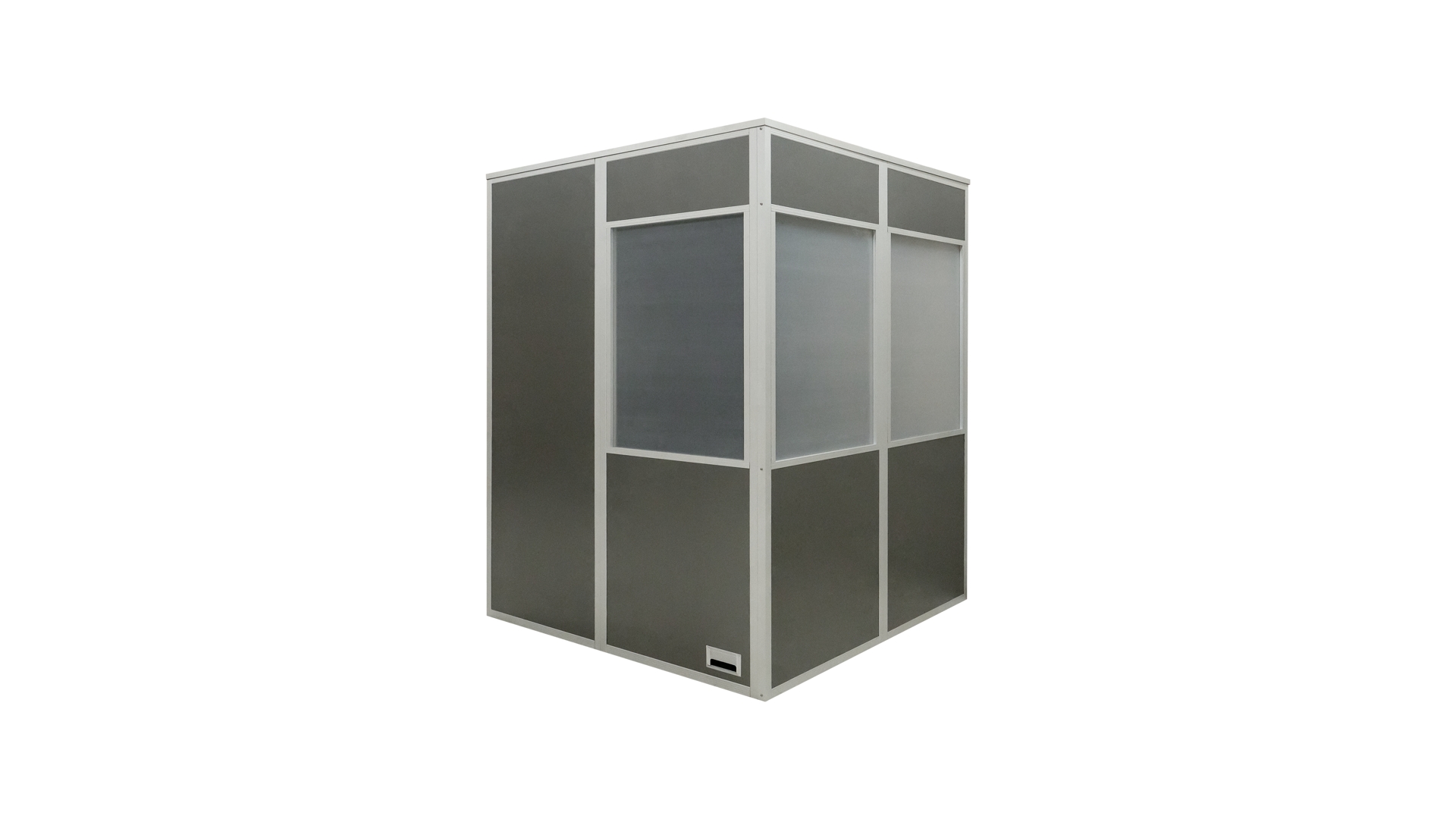

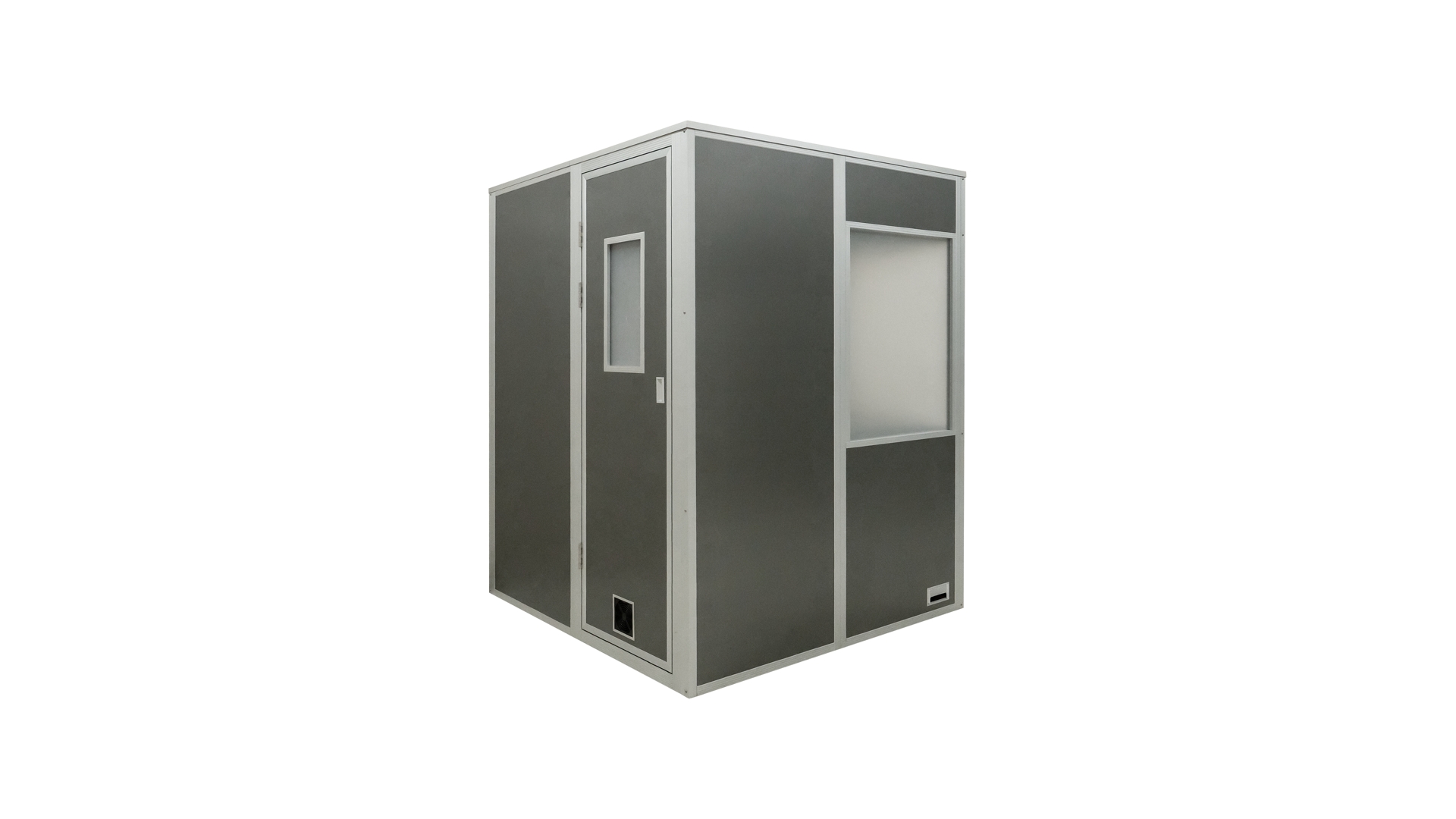

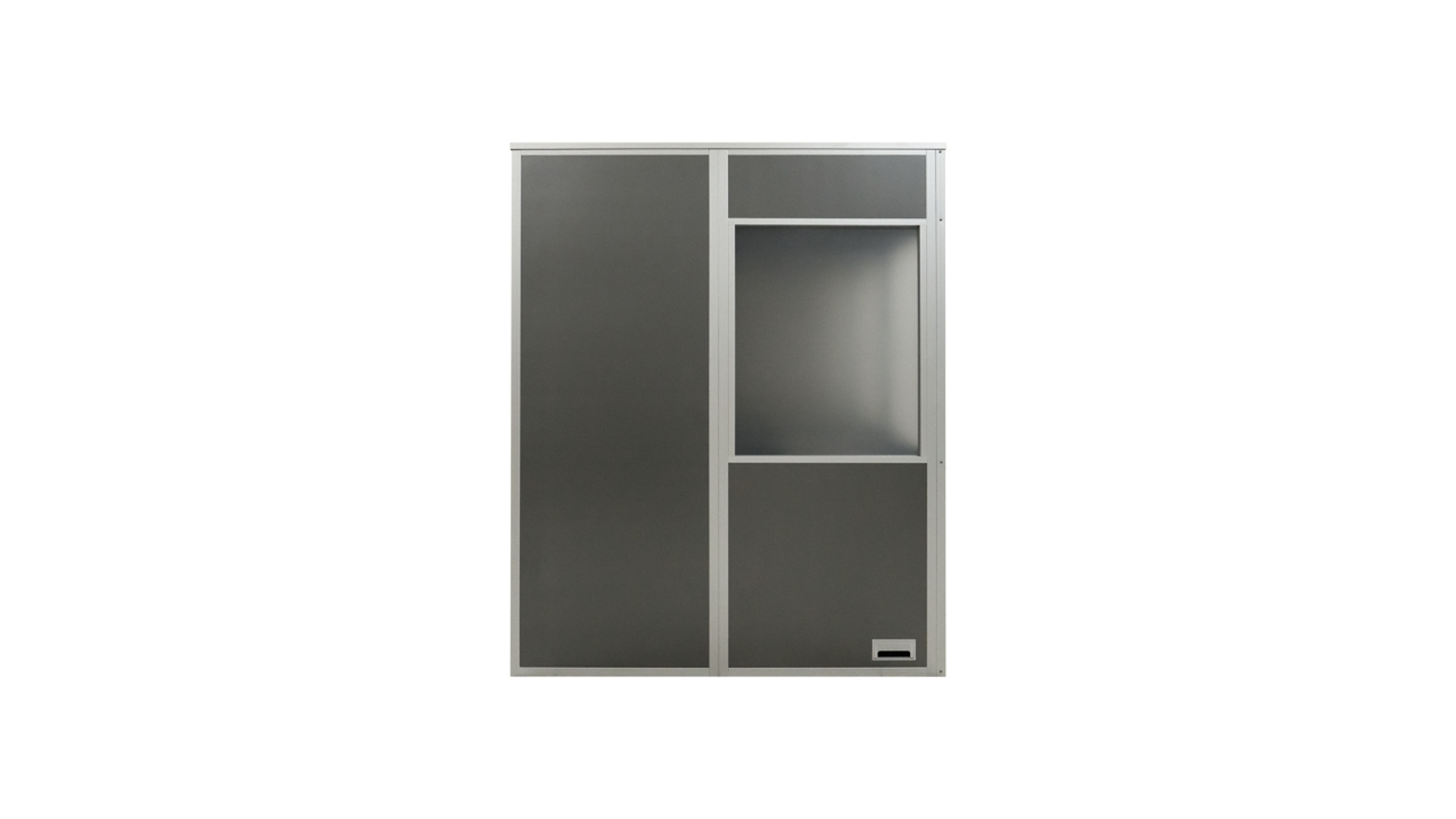

The 2-Person Interpretation Booth is a lightweight, modular, and easy-to-install unit. Built to ISO 4043 standards, it has 35mm thick panels and a sturdy aluminum alloy frame. The interior includes sound-absorbing panels to reduce dust and ensure comfortable breathing for interpreters.

The modules connect using hook-style fittings, requiring no tools for installation.

Installation time: approximately 5 minutes.

The complete set includes 8 panels (4 with windows, 1 door panel), 2 roof covers, 1 tabletop, 2 cable holes, 1 ventilation hole, and 2 ventilation fans.

Standard window: 860mm high x 680mm wide; standard tabletop height: 740mm from the ground, dimensions: 1530mm x 500mm; cable hole size: 160mm x 80mm.

Outward-opening door meets safety standards.

Silent top-mounted ventilation fan with 8 air changes per minute.



Related Products:

Related recommendations:

The modules connect using hook-style fittings, requiring no tools for installation.

Installation time: approximately 5 minutes.

The complete set includes 8 panels (4 with windows, 1 door panel), 2 roof covers, 1 tabletop, 2 cable holes, 1 ventilation hole, and 2 ventilation fans.

Standard window: 860mm high x 680mm wide; standard tabletop height: 740mm from the ground, dimensions: 1530mm x 500mm; cable hole size: 160mm x 80mm.

Outward-opening door meets safety standards.

Silent top-mounted ventilation fan with 8 air changes per minute.

Door options: rear or side opening.

Table load capacity: 30kg.

Comes with flight case + cardboard packaging (wooden packaging recommended for stationary setups to reduce costs).
